Section 6A

Introducution

Digital agriculture, also known as precision agriculture or smart farming, is an approach to farm management that uses digital technology and data to monitor, measure, and manage agricultural operations. This approach aims to enhance the efficiency, productivity, sustainability, and profitability of agricultural practices.

What is digital agriculture?

Involves the integration of advanced technologies such as GPS (Global Positioning Systems), sensors, IoT (Internet of Things) devices, drones, robotics, AI (Artificial Intelligence), and big data analytics into farming practices.
A recent USDA report defined the Components of Digital Agriculture (DA) as falling into three categories:
Data and Data Collection Systems
Decision Support Tools
Data-Driven Equipment and Input Adjustments

Data and Data Collection Systems

  • Harvest Yield Monitors
  • Soil monitoring equipment and sensors
  • Crop imagery from drones, aircraft or satellites

Decision Support Tools

  • Farm Management Software
  • Agronomy Recommendations Software

Data-Driven Equipment and Input Adjustments

  • Machinery Guidance Systems
  • Automated Section Control
  • Variable Rate Applicators

How can digital agriculture support soil management?

Traditional soil sampling methods in agriculture, crucial for assessing soil health and fertility, face many operational limitations. These methods are time-consuming and labour-intensive, involving manual collection and analysis, which can be costly and challenging, especially for large operations. This can often lead to reducing the number of samples taken which may fail to capture the field's spatial variability due to limited sampling points, leading to potentially inaccurate soil health assessments.

Additionally, the practice of extrapolating limited sample data to represent entire fields can introduce inaccuracies due to soil heterogeneity, risking inappropriate application of agricultural inputs like fertilisers and water

Digital agriculture leverages advanced, cost-effective technologies for scalable soil monitoring, employing both stationary probes and spatial sensing to assess soil conditions like moisture, temperature, and pH.

Integrating new data and GIS mapping software enables precise field mapping and zoning, highlighting soil variations to guide targeted sampling and informed management.

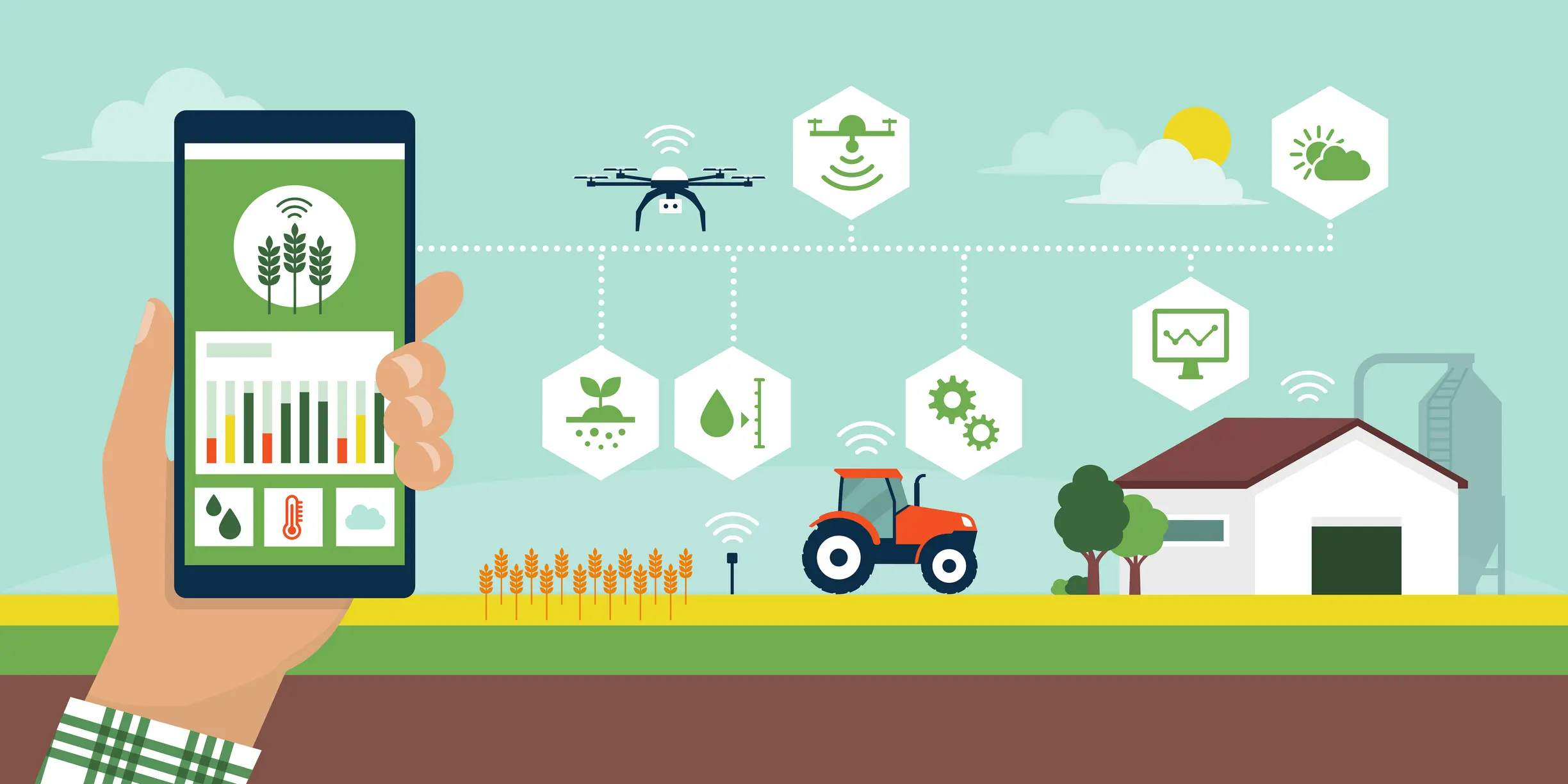

Figure 1: Render of digital soil farming as imagined by Chat GPT
Source: ChatGPT

Remember

Data-driven insights, combined with precision-enabled equipment, allow for the accurate application of crop inputs

Supported by precision farming advancements, these data-driven insights, combined with precision-enabled equipment, allow for the accurate application of crop inputs, thereby improving efficiency, reducing waste, and minimising environmental impact, all while optimising crop growth..

Section 6B

Soil Sensing Technology

Soil sensing technology encompasses a range of methodologies, from traditional soil sampling techniques, which provide foundational data through discrete samples, to advanced station soil probes and proximal soil sensing methods that offer continuous, high-resolution data.

What is soil sensing technology?

Soil sensing technology represents a pivotal advancement in precision agriculture, offering a multifaceted approach to understanding and managing the intricate dynamics of soil properties.

Soil Sensing Technology tools

These tools enable the detailed characterisation of soil moisture, pH, nutrient levels, and other critical parameters, facilitating informed decision-making and optimised resource management.
Physical Soil Sampling
Grid Sampling
Spatial Informed Sampling Techniques

Physical Soil Sampling

Soil sampling remains a cornerstone of agronomic evaluation, shedding light on critical soil characteristics that might limit farm output, like nutrient shortfalls, pH discrepancies, and moisture issues. By utilising targeted samples, can also ne used in predictive models to spread the valuable point information across entire fields.

Yet, the challenge lies in gathering data that truly reflects the diverse conditions within your fields, a process that can be costly if not approached with a strategic mindset.

It's all about smart sampling—pinpointing the most telling spots in your fields to ensure your efforts and investments yield the most beneficial insights into your soil's health and productivity potential.

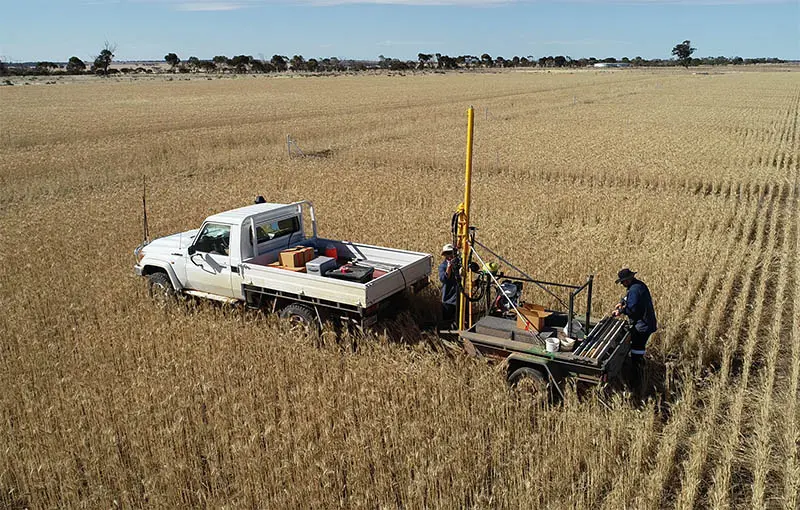

Figure 2: Carbon Sampling

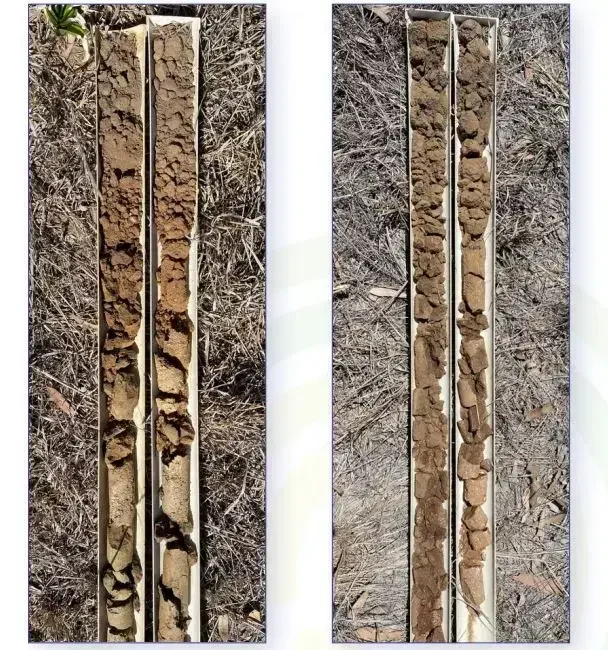

Figure 3: Example soil profiles

Grid Sampling

Grid-based soil sampling offers a structured method for examining soil, breaking down a paddock into a consistent grid pattern where a defined number of samples are taken within each grid.

This approach improves the detail in soil data, providing a clearer picture of soil variation and allowing for the creation of management zones suited to particular soil characteristics.
However, this method isn't without its drawbacks; it can be more expensive and requires significant labour compared to more targeted sampling techniques.

This higher cost can lead to fewer samples being collected by increasing grid sizes, which might result in the data not fully representing the soil's inherent diversity, potentially missing out on the full spectrum of soil types and their chemical properties within a paddock.

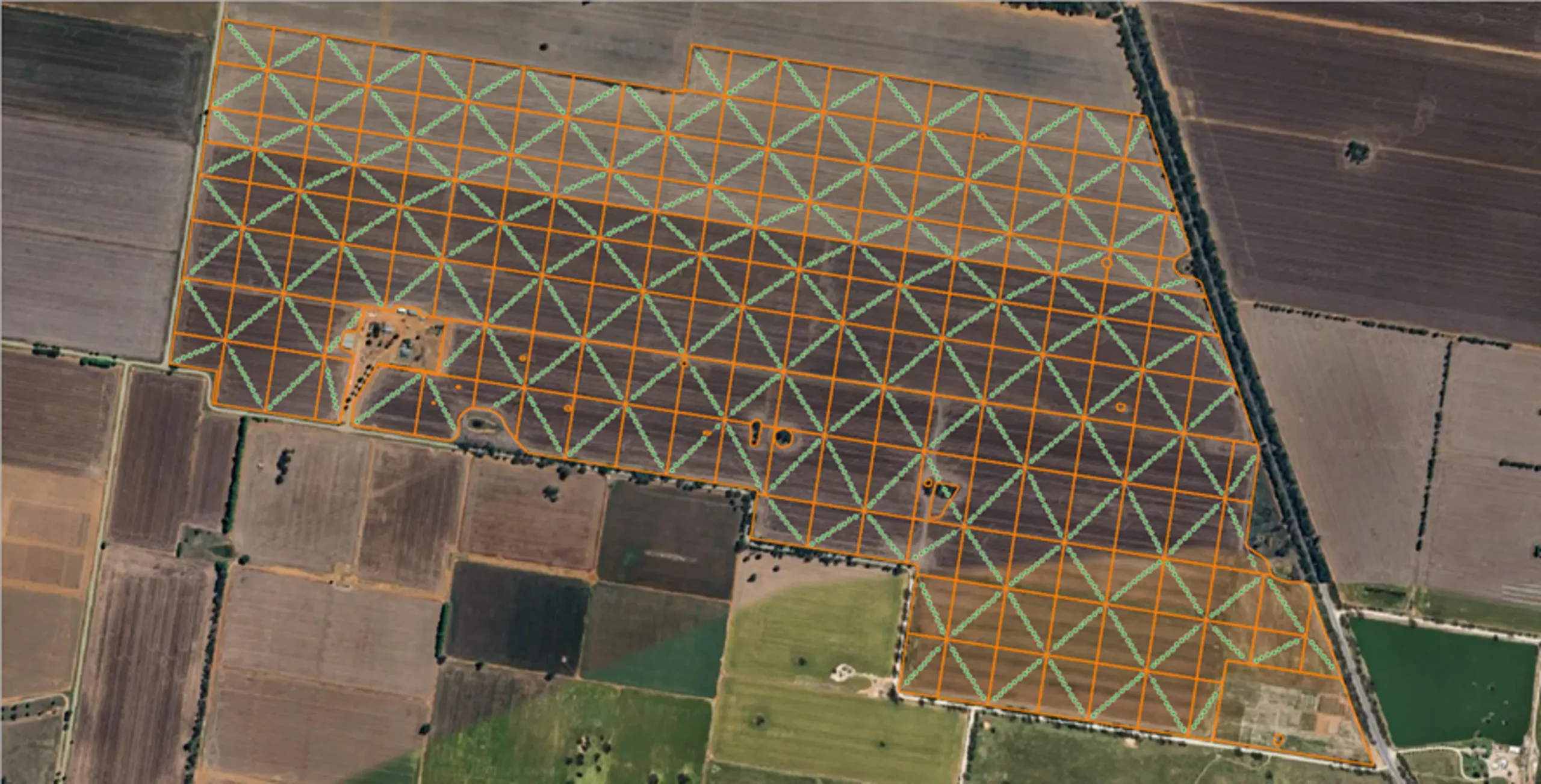

Figure 4: Example of a grid sampling design conducted on the Charles Sturt University Farm at Wagga Wagga. The orange lines represent the individual grids, while the green lines indicate the transect on while soil cores were taken.
Source: Charles Sturt University - Global Digital Farm

Spatial Informed Sampling Techniques

Moving beyond grid sampling, a targeted approach involves leveraging existing farm data to strategically pinpoint sampling sites within designated management zones, thus tailoring a more focused and efficient soil sampling regimen. This method can incorporate data from proximal sensing techniques, yield maps, or satellite imagery to reveal soil and yield variability. Such insights enable the identification of the most strategic points for sample collection, enhancing cost-effectiveness and deepening understanding of soil variation across paddocks.

Additionally, employing strategies like conditioned Latin hypercube sampling (cLHS) brings an advanced statistical edge to optimising sample site selection. This approach ensures a representative spread across available spatial datasets to capture the soil's spatial variability with fewer samples. By integrating these data-driven strategies, growers can achieve a more nuanced and cost-effective understanding of their soil's health and productivity potential.

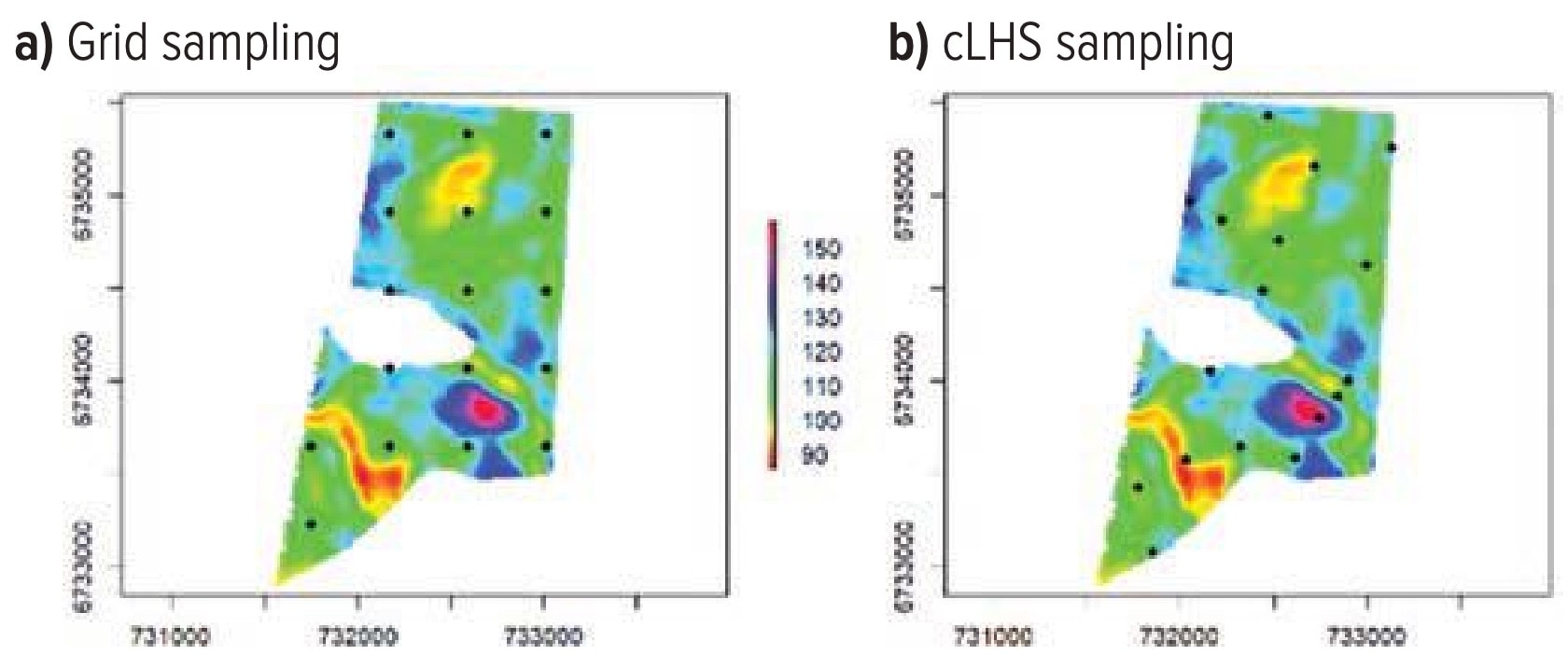

Figure 5: Grid Sampling (a) versus conditioned Latin hyper-cube sampling (b)

Section 6C

Proximal Soil Sensing

Ground-based on-the-go proximal soil sensing is revolutionising the way Australian farmers and agronomists gather and utilise soil data. This innovative method involves mobile sensors that are attached to farm machinery or an ATV, collecting soil property data in real-time as they traverse the paddock. These sensors can measure a variety of crucial soil parameters, including electrical conductivity, moisture levels, pH, and more.

Conducting ground-based surveys is typically priced between $10 to $15 per hectare, excluding ground-truthing or data analysis. Such surveys can efficiently cover around 50 hectares per hour, operating along 36m transects and capturing a data point every 5 meters. Additionally, there are companies that offer rental services for the necessary equipment to carry out these surveys, providing a practical solution for farmers and agronomists looking to gather comprehensive soil data.

The following sections will highlight some of the common solutions for proximal soil sensing.

Electromagnetic conductivity

Electro-magnetic induction (EM) proximal sensing has emerged as a cornerstone in the field of Digital Soil Mapping and precision agriculture, providing invaluable insights into soil properties through the measurement of apparent electrical conductivity (EC) at various depths.

EM sensors, operate by transmitting an electromagnetic pulse into the soil and measuring the resultant interference, offering a non-invasive means to gauge soil EC. Soil EC is an indirect measure of salinity, but also indicative of soil texture and moisture. Higher Soil EC readings are typically associated with clay-rich soils that exhibit greater moisture and salt content.

Conversely, sandy soils, which are less dense, tend to show lower conductivity readings, with measurements largely affected by soil moisture and the depth to underlying clay layers.

Remember

EM sensors, operate by transmitting an electromagnetic pulse into the soil.

Did you know?

Most agricultural surveys use dual-EM. This option is able to measure EC to depths of 50 centimetres and 1.5 metres.

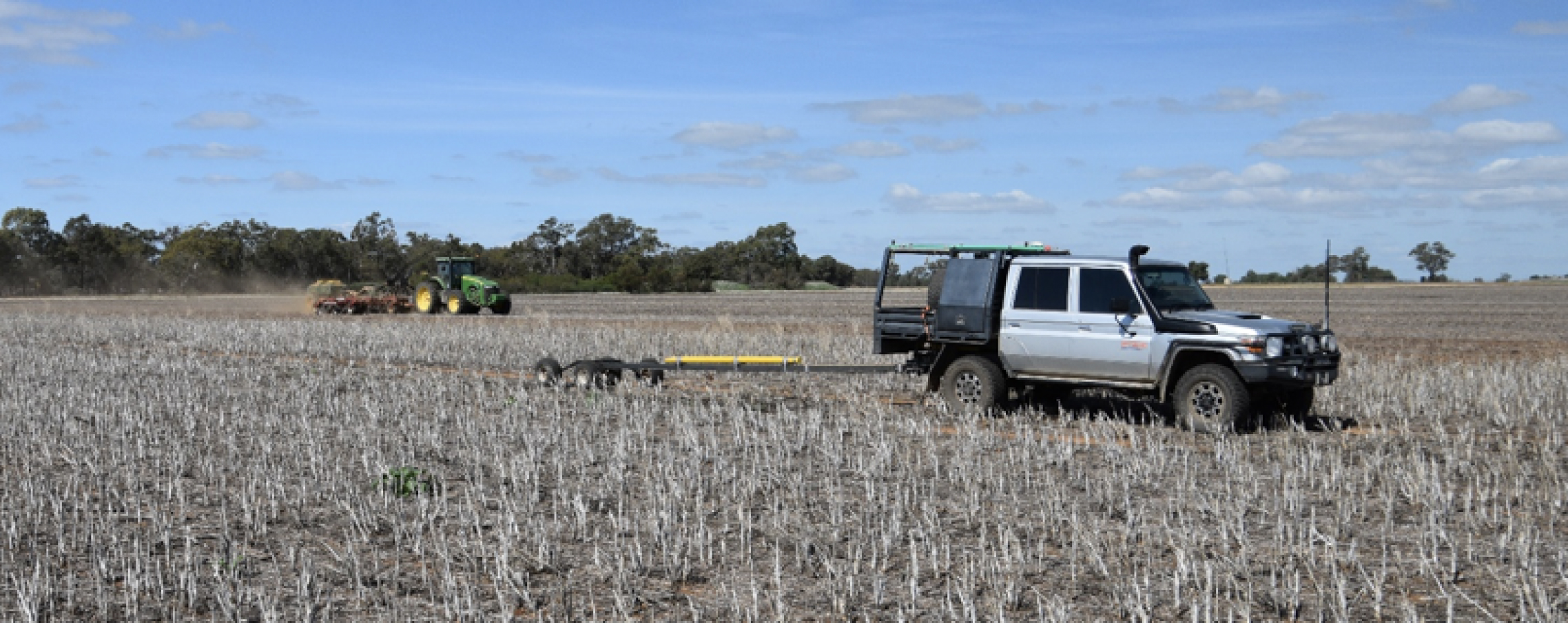

Figure 6: LEM soil survey in action at the CSU Farm.
Source: Charles Sturt University - Global Digital Farm

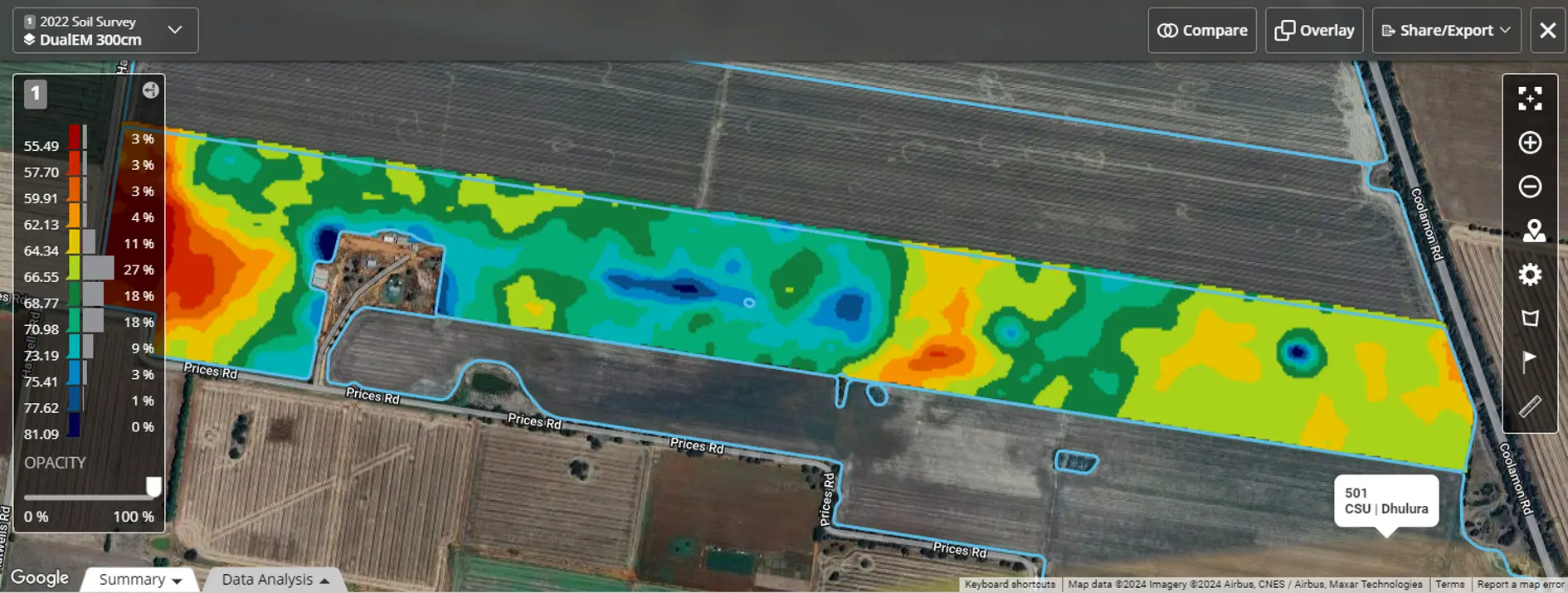

Figure 7: The resulting EM survey map for a paddock on the CSU Farm. Red areas represent lower conductivity, while blue areas showcase high conductivity.
Source: Charles Sturt University - Global Digital Farm

Gamma Radiometric Surveys

What are Gamma Radiometric Surveys?

Gamma Radiometric, or gamma-ray, surveys are a technique for assessing soil properties by detecting the natural radiation emitted by decaying isotopes such as potassium, uranium, and thorium in the soil and rock.

Gamma Radiometric can help to differentiate bedrock and soil, detect weathering intensity, textural properties, and soil nutrient status. This soil survey method is particularly useful in sandy and sandy gravel soil, common to Western Australia, which often yields low EM readings despite the presence of soil type variations.

Due to the nature of the survey, where the effectiveness of radiometric signals diminishes with depth, this survey is reliable only up to 40cm.

The Gamma Radiometric sensing unit is mounted approximately 80cm above the ground. Surveying with this unit requires a narrower recommended swath width, 12m, relating to a 24Ha capacity at speeds of 20kph.

Did you know?

The Gamma Radiometric sensing unit is mounted approximately 80cm above the ground.

Remember

Gamma radiometric surveys are particularly useful in sandy and sandy gravel soil, common to Western Australia

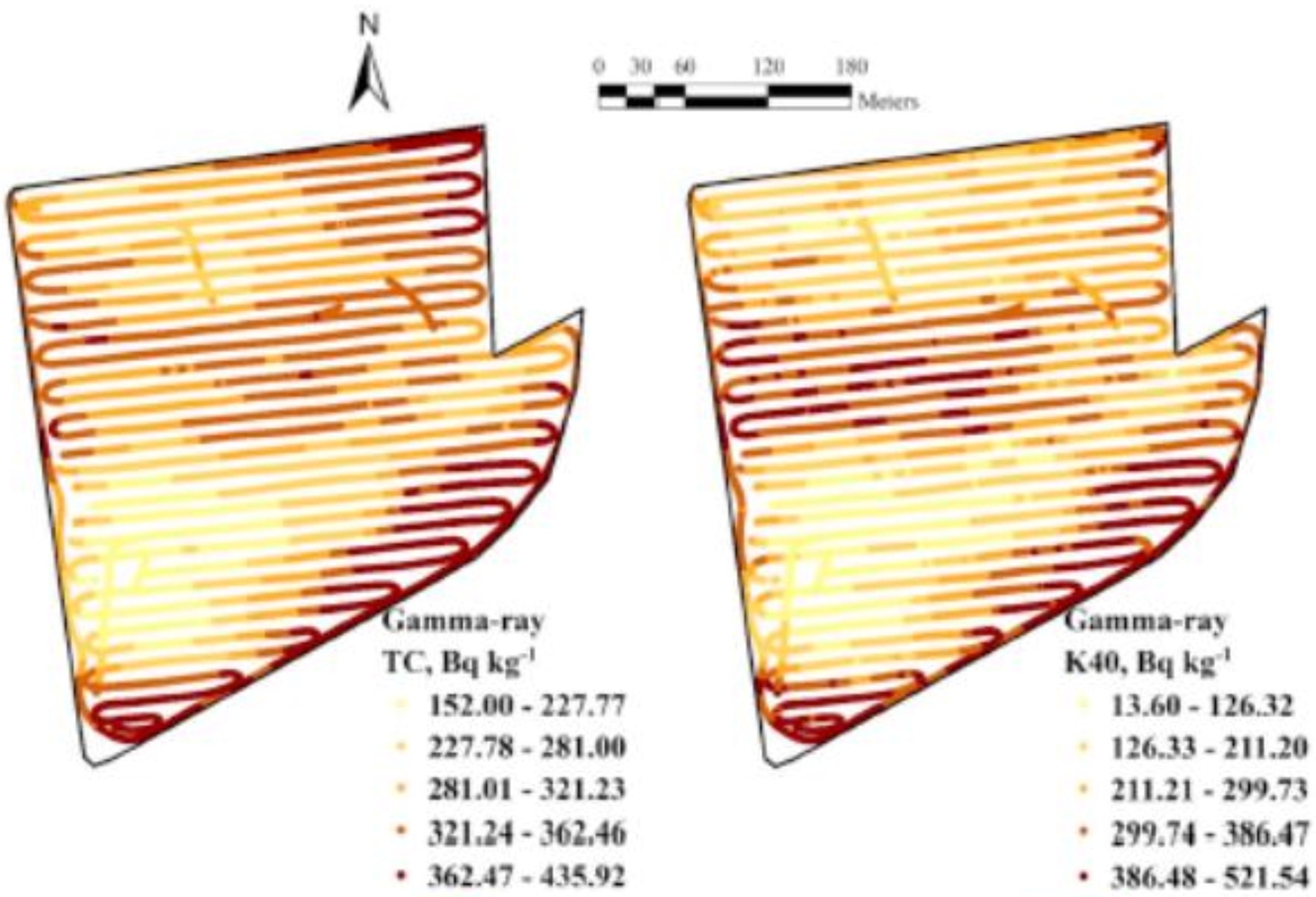

Figure 8: Spatial distribution of Gamma-ray measurements within the study field. Note that the scale of the measurement varied between plots. (Wenjun Ji, et al, 2017)
Source: Crop Life

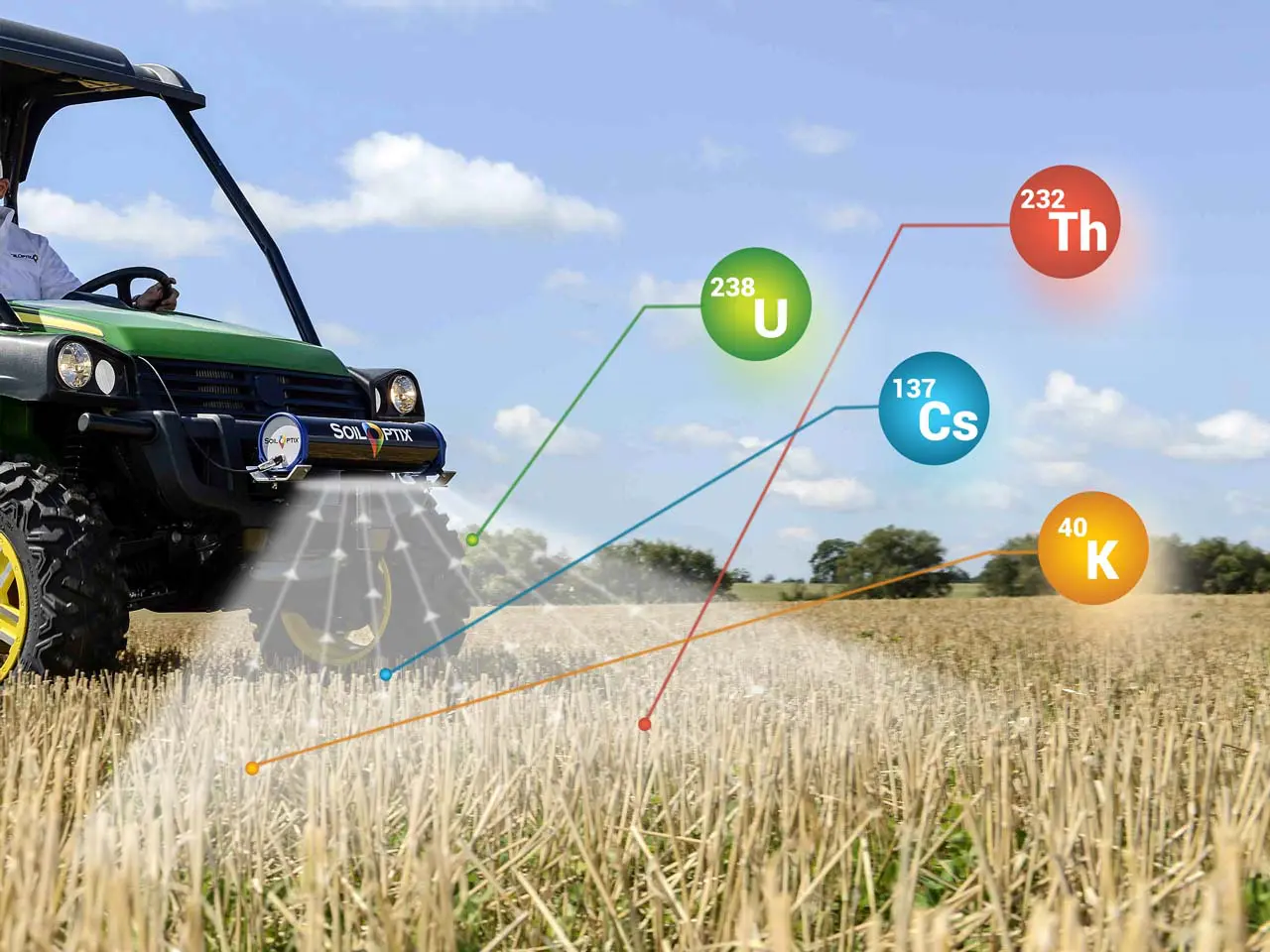

Figure 9: Example of a Gamma Radiometrics sensor mounted to the front of an ATV. Bubbles indicate the isotopes detected in the soil (Potassium, Uranium, Thorium and Caesium)
Source: Soil Optix

Field Elevation

What is field elevation useful for?

Field elevation greatly improves the insight into paddock topography, essential for precision agriculture in Australia.

Utilising elevation data alongside spatial soil assessments greatly improves the insight into paddock topography, essential for precision agriculture in Australia. Although free regional elevation datasets are available across many states, their resolution might not meet the needs for in-depth paddock analysis.

Elevation information gathered during planting, or in conjunction with other proximal sensing activities, tends to be more accurate and is readily accessible via machinery consoles or through comprehensive farm management platforms like the John Deere Operations Centre or AFS Connect. It's important to note, though, that elevation data collected during harvesting or spraying may not be as dependable due to the variability in machinery weight.

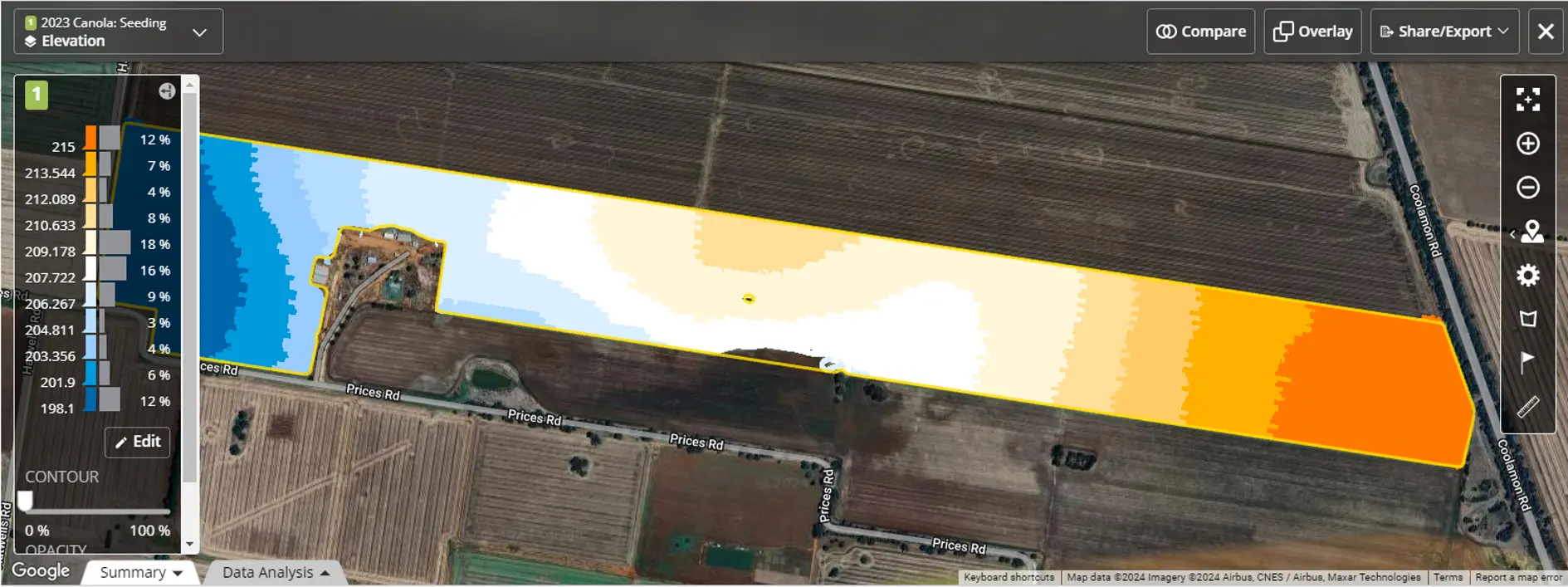

Figure 10: A field elevation map for a paddock on the CSU Farm. Orange areas represent higher elevation conductivity, while blue areas showcase lower elevation. Data captured by the tractor GPS during sowing.
Source: Charles Sturt University - Global Digital Farm

LiDAR Technology

For more detailed elevation and topographical insights, aerial Light Detection and Ranging (LiDAR) technology, though less commonly employed, provides high-resolution 3D paddock mapping by measuring distances with a pulsed laser. This technology is available through contracted services using manned flights or drones.

Year-to-year variations in field yield are often attributed to elevation differences, affecting water transfer and retention across the landscape.

Sloped areas tend to drain water away, while flatter regions are prone to moisture accumulation.

This variability in water storage is also influenced by soil types, each with distinct water-holding capacities. Consequently, yield responses can fluctuate seasonally; lower areas that retain moisture may thrive in dry conditions but suffer in wet seasons due to waterlogging.

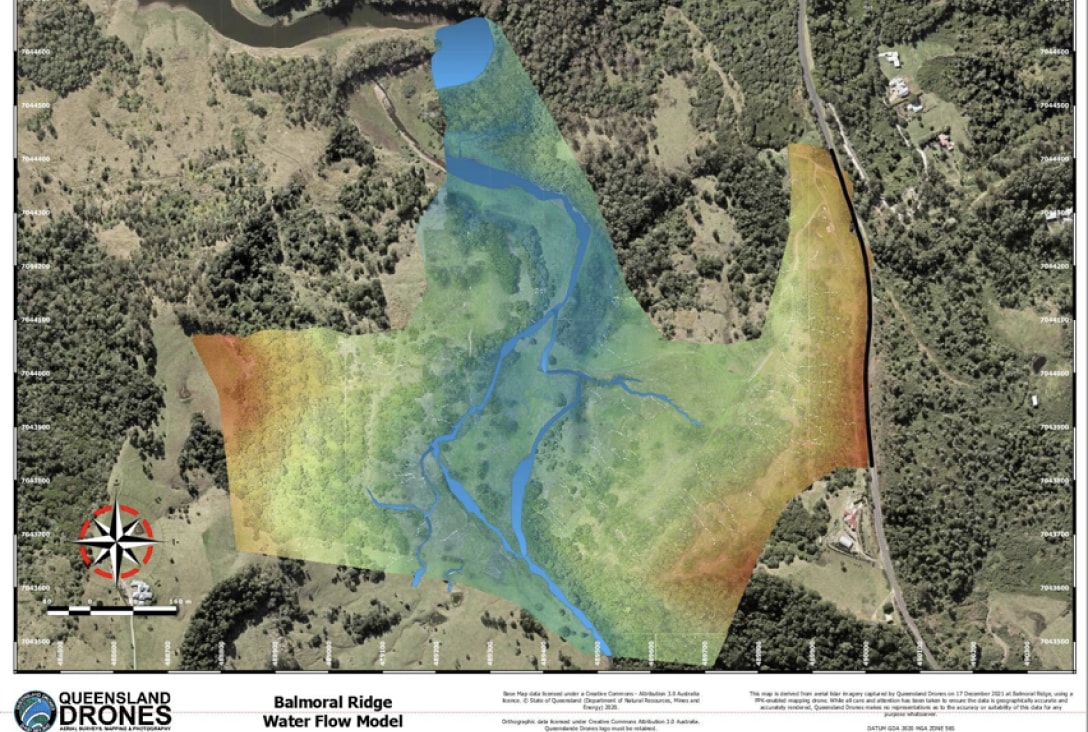

Figure 11: Contour map based on elevation data captured by drone. This map can be used to indicate relative height of ridges and valleys, water flow lines and more.
Source: QLD Drones

Did you know?

Incorporating elevation data and slope analysis into spatial soil management plans can provide valuable insights for optimising agricultural practices and mitigating yield variability.

Veris MSP3 Soil Scanner

What is the Veris MSP3 Soil Scanner?

Currently, Veris® offers Australia's sole on-the-go pH sensor for agricultural use. The Veris MSP3 soil scanner is able to record the acidity (pH), the organic matter percentage and the EC at growing depth (0-30cm) and in the root zone (0-90cm) in a single pass.

How the MSP3 Soil Scanner works

This advanced system integrates a hydraulic soil sampler, pH electrode measurement technology, and a water wash feature.

In operation, an ion-selective electrode penetrates the soil to approximately 10 centimetres deep, obtaining pH readings.

It utilises the soil's inherent moisture for accurate pH assessments, with calibration against known standards ensuring precision.

After each measurement, the sampled soil is ejected, and the electrodes are promptly cleaned with a water jet, readying the system for continuous use.

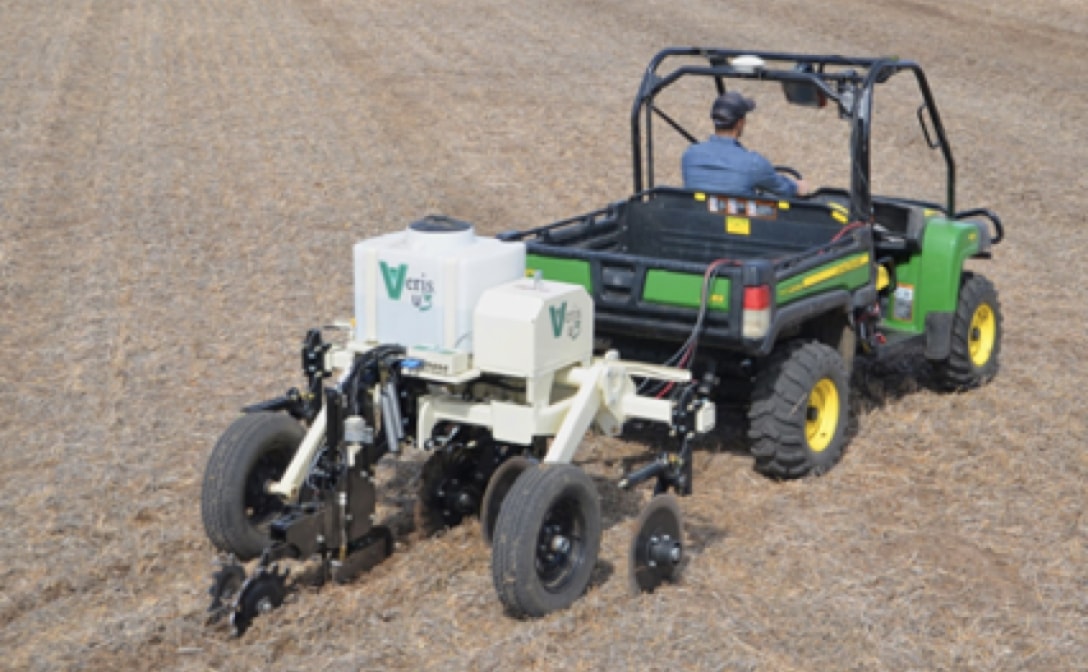

Figure 12: Example of the Veris implement being towed by an ATV. The sensor uses three sensors to create high resolution soil pH, organic matter and soil texture (EC).
Source: Veris

Did you know?

This tool is capable of surveying around 250 hectares daily, the system performs 10 to 12 pH evaluations per hectare.

Veris iScan

What is the VerisScan?

The mPT Smart Seeder, invented in and owned in Australia, offers real-time proximal mapping of soil properties while planting. Equipped with state-of-the-art In Furrow technology, this innovative seeder integrates sensors to chart critical soil parameters such as moisture and temperature directly from the furrow. The developed seeder is available at widths ranging from 12-18m, and can achieve a seeding depth of 0-250mm.

How the VerisScan works

This advanced soil mapping and furrow sensing tool provides accurate data on EC, soil organic carbon (SOC), moisture, and temperature, reaching depths of up to 60 centimetres.

Equipped with its own GPS receiver, the iScan wirelessly relays information to a tablet PC inside the cabin, with just a 12V power supply needed for activation.

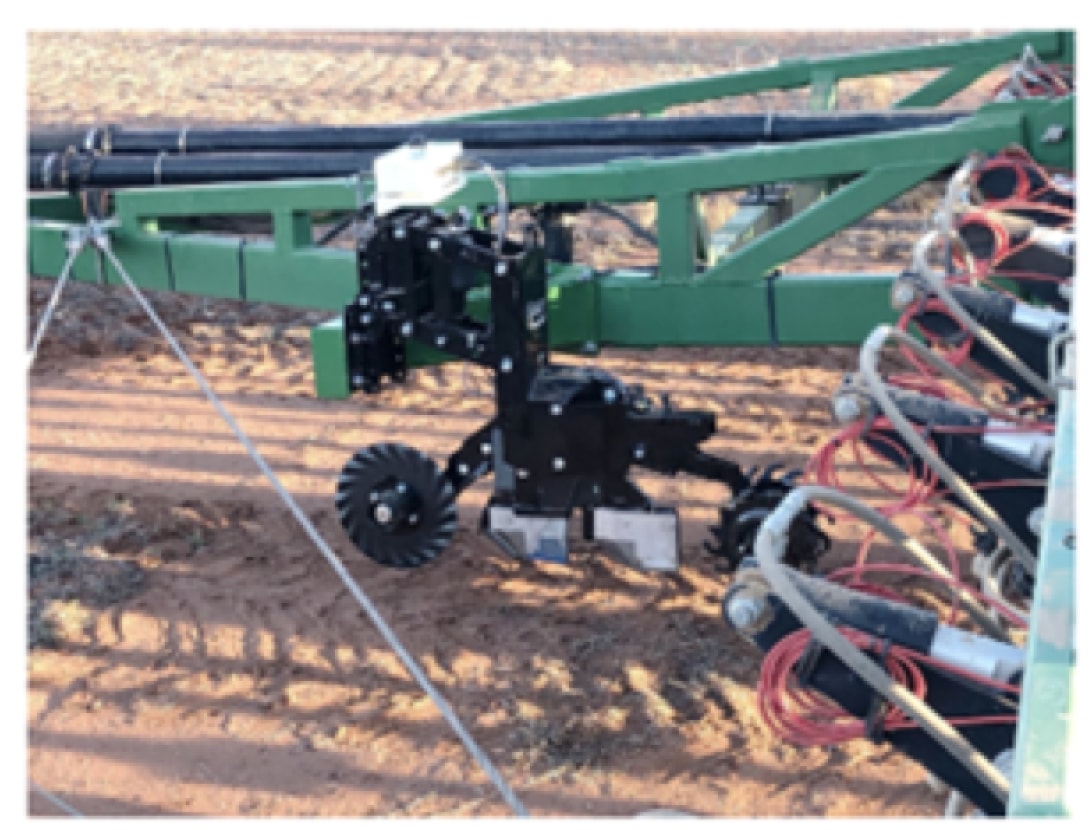

Figure 13: The iScan deep soil mapping module mounted on a seeding bar during sowing.

mPT Smart Seeder

What is the mPT Smart Seeder?

The mPT Smart Seeder, invented in and owned in Australia, offers real-time proximal mapping of soil properties while planting. Equipped with state-of-the-art In Furrow technology, this innovative seeder integrates sensors to chart critical soil parameters such as moisture and temperature directly from the furrow. The developed seeder is available at widths ranging from 12-18m, and can achieve a seeding depth of 0-250mm.

How the mPT Smart Seeder works

The system is designed for real-time data utilisation, where the Smart Seeder adjusts seeding depth on the go based on soil moisture, shown to reduce fuel usage.

Additionally, the data collected can be integrated with existing field maps, enriching the farmer's understanding of paddock variability. This, in turn, supports more precise zoning for targeted soil sampling, optimising farm management practices.

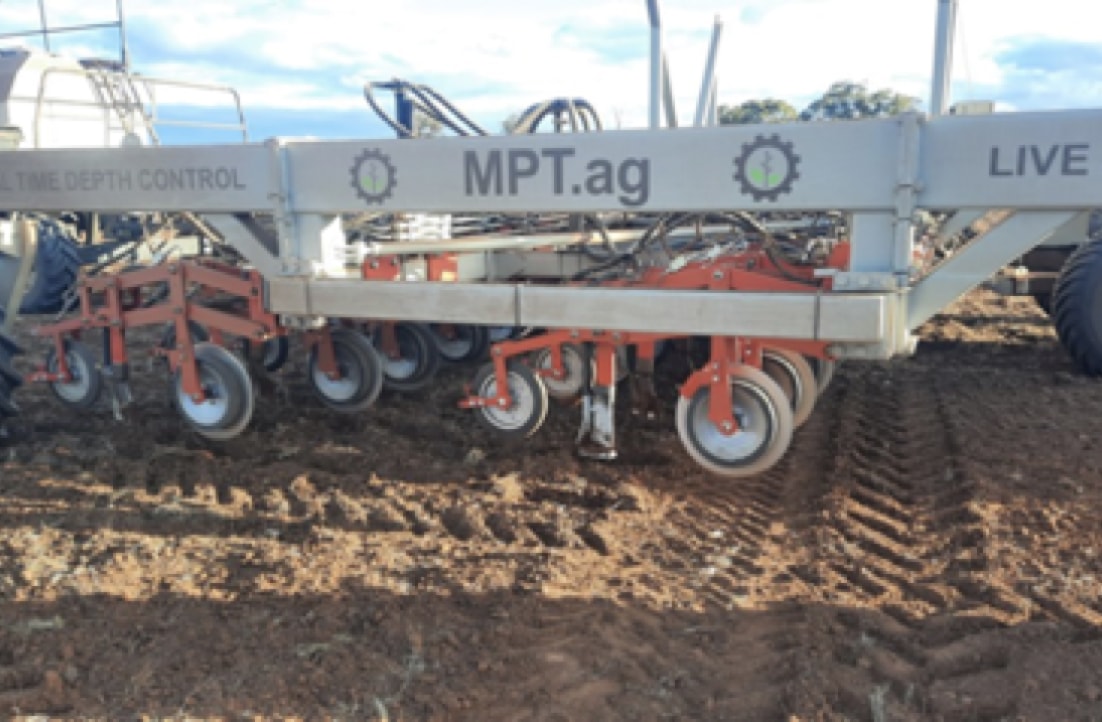

Figure 14: The MPT furrow sensor integrated into their air seeder design.
Source: MPT AgTech

Other Spatial Layers

Crop Yield

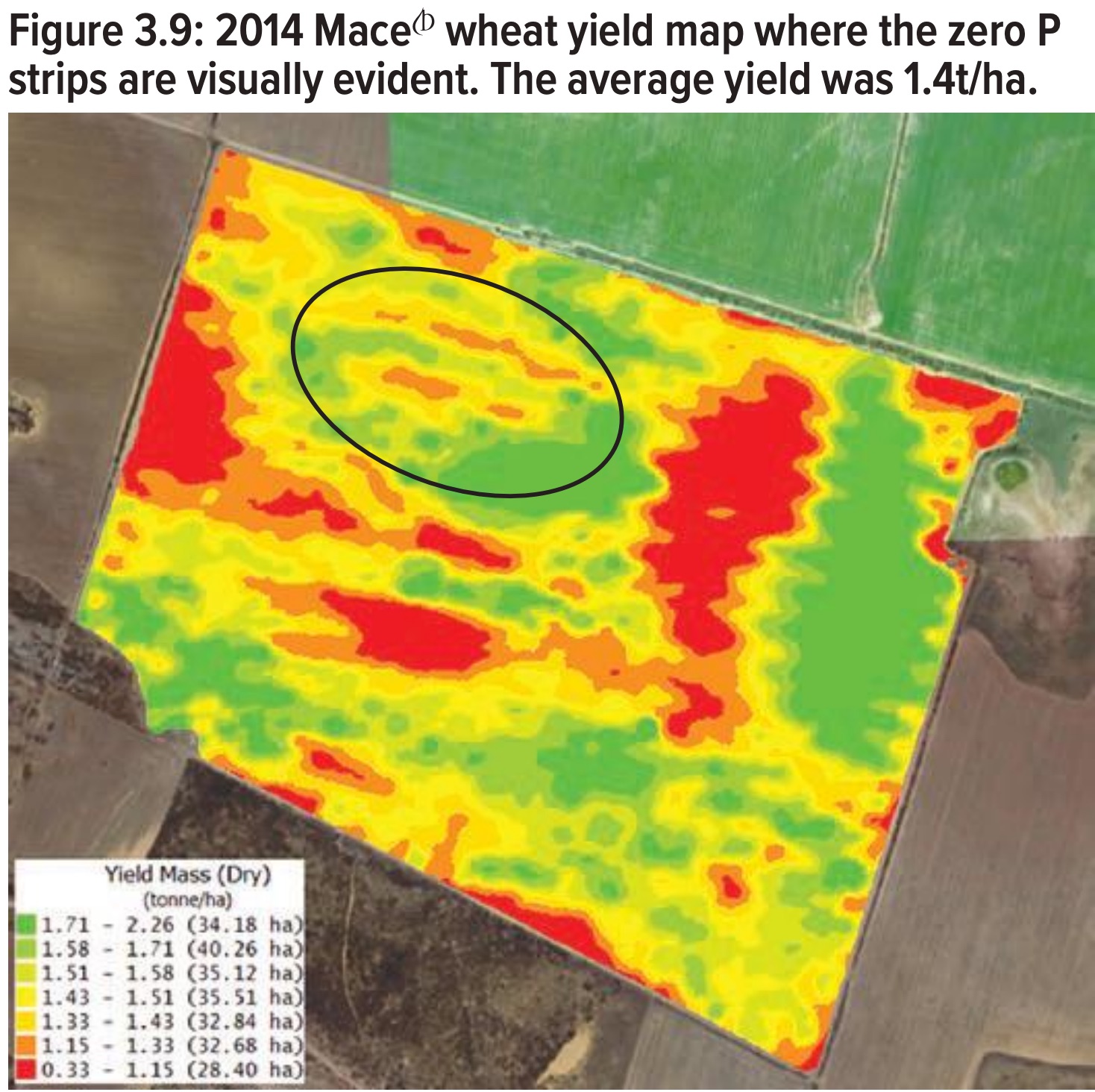

Yield data, collected by the combine at harvest, serves as a crucial indicator of the variability of crop production within a field.

Yield maps often highlight zones with varying plant available water content, correlating with higher and lower yields. However, this variation may also be driven by other yield-determining factors, such as disease, soil compaction, or salinity, which impact water uptake.

In the Riverina, the primary factors influencing yield can shift from season to season with changing growing conditions.  This is particularly true where climatic conditions may drive higher levels of waterlogging, pest damage, or weed issues. To overcome changes in field variability, a multi-year analysis of yield data can be used to provide a more accurate classification of paddock zones based on consistent yield performance—high, average, below-average, or variable.

Crop Yield

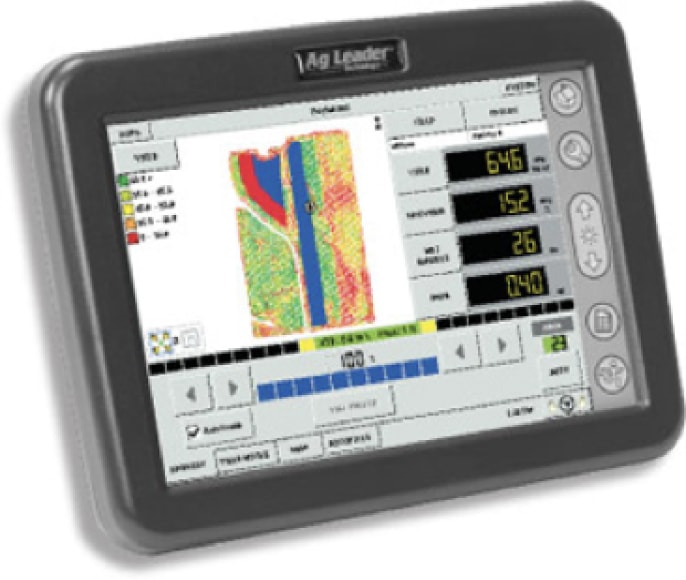

Figure 14: Yield monitor display from the cab console.
Crop Yield 2

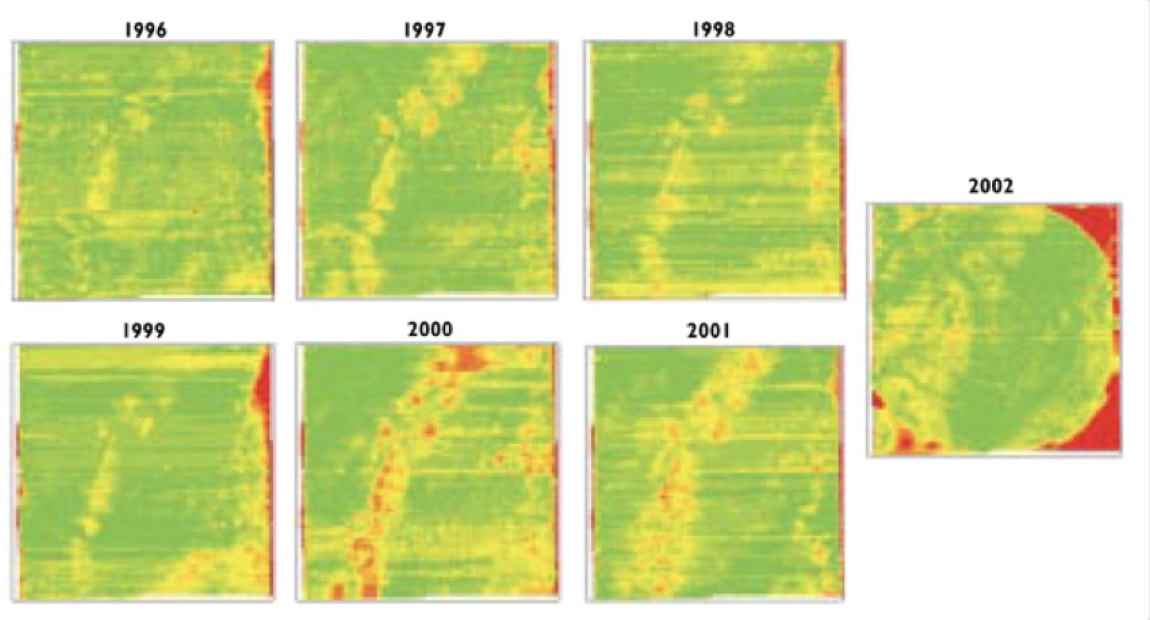

Figure 15: Maps of relative yield of corn and soybean grown during a seven-year period (red indicates low-yielding areas and green indicates higher than average yields).

Remote Sensing

Airborne imagery from satellites, manned aircraft, and drones offers an aerial view of landscapes and crops. These visuals are key for spotting crop variability at different growth stages, which often can’t be detected with ground-level observations.

Common remotely sensed vegetation indices are listed below:

  • Normalised Difference Vegetation Index (NDVI): NDVI is a widely used index that measures vegetation health and biomass by calculating the difference between near-infrared (which vegetation strongly reflects) and red light (which vegetation absorbs).
  • Enhanced Vegetation Index (EVI): EVI adjusts the NDVI formula to optimise the signal by reducing soil background influences and correcting for atmospheric conditions, providing more sensitive vegetation measurements in high biomass regions.
  • Soil Adjusted Vegetation Index (SAVI): SAVI incorporates a soil brightness correction factor into the NDVI calculation, making it particularly useful in areas with sparse vegetation where soil is visible.
  • Normalised Difference Red Edge (NDRE): NDRE focuses on the red edge spectral region, offering insights into chlorophyll content, particularly useful for assessing crop health in later growth stages.
Remote Sensing
Remote Sensing

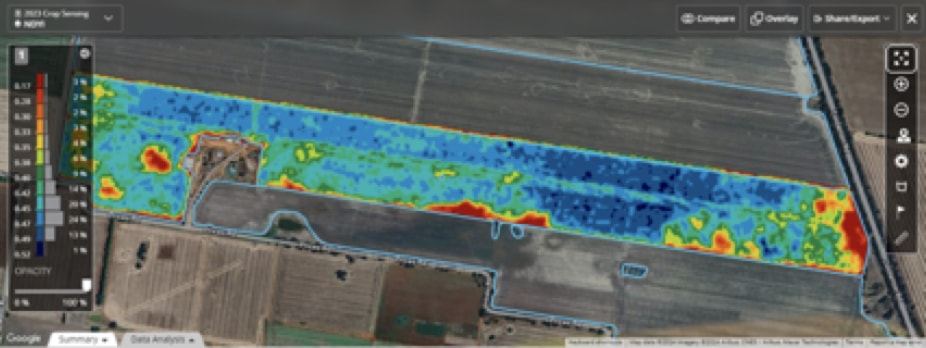

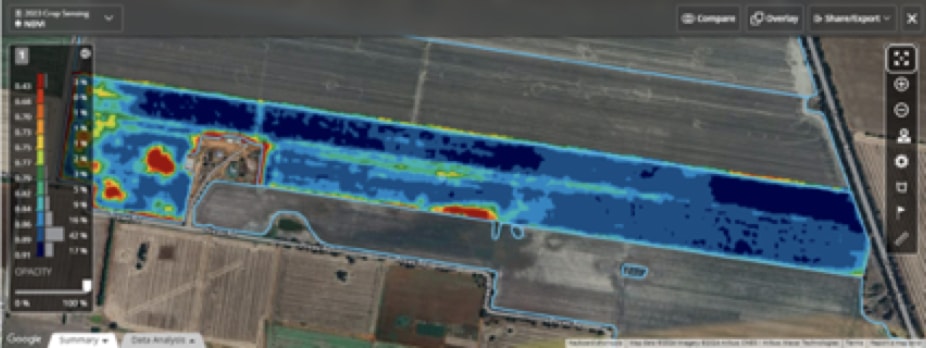

Figure 16: Map of remotely sensed vegetation incides for a paddock on the CSU Farm. The areas in blue represent areas in the field with higher crop vigour, while red areas showcase lower crop vigour.
Image credit: Charles Sturt University - Global Digital Farm

Future Proximal Sensing Systems

The evolution of GPS-enabled automated agricultural robotics have the potential to significantly improve sensing and collection of proximal and crop growth data used in precision agriculture.

These robots, equipped with GPS for precise navigation, can autonomously roam fields, gathering detailed data on soil properties and crop health indicators at higher frequency and resolution. The ability to conduct frequent and thorough data collection with these robots reduces the reliance on manual labour, streamlining operations and cutting costs.
As a result, farmers and agronomists can focus on strategic decision-making and management, leverage the detailed insights provided by robotic technology to optimise crop yields and resource use.

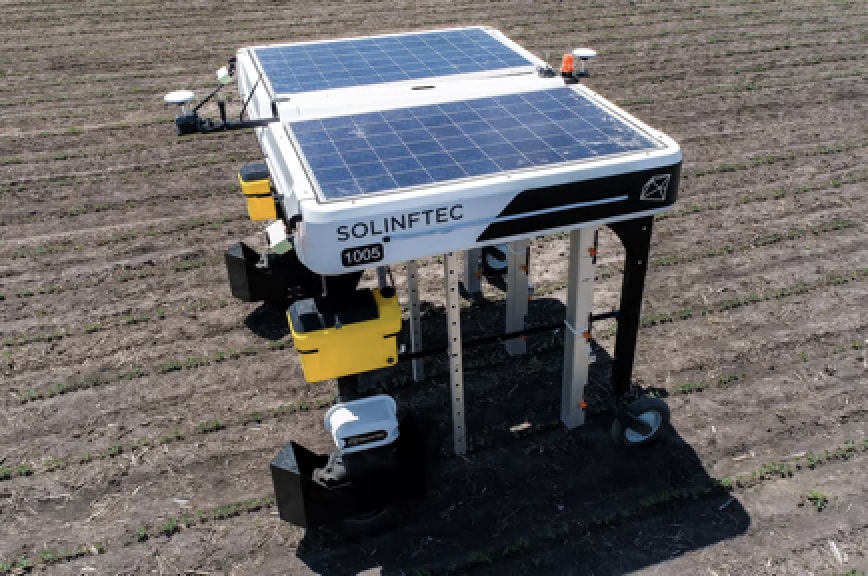

Figure 17: Solinftec 'Solix', robot, which can be fitted with sensing systems, out in the field.

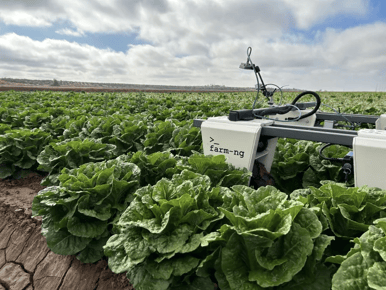

Figure 18: farm-ng 'Amiga', a modular autonomous robot out in the field
Source: farm-ng

Benefits Of Stacked Proximal & Spatial Maps

Stacking multiple proximal and spatial data layers is an efficient method for defining informed management zones across your paddocks. These stacked layers and subsequent management zones can then be used to inform the most efficient soil sampling locations to best capture the variability of the paddock.

By employing a statistical clustering technique, paddocks can be divided into zones with similar characteristics based on the data layers. The number of zones can be data-driven or based on a grower assessment of paddock variability.

Soil sample distribution within each zone is then tailored to reflect the zone's proportion of the paddock area, ensuring a sampling strategy that truly represents each zone's conditions. Selection of precise sampling points within zones aims for geographical balance and accounts for variability within zones, through either random or strategic selection.

Remember

Gamma radiometric surveys are particularly useful in sandy and sandy gravel soil, common to Western Australia

Analysis of soil properties

Following soil sampling, the analysis of soil properties can confirm the existence of distinct management zones, enabling the formulation of tailored crop management strategies that align input applications with the productive capacity of each zone.

Moreover, the delineation of these zones and the selected sampling locations can inform the strategic positioning of fixed soil monitoring systems, such as moisture and EC sensors. These permanent installations provide ongoing insights into soil conditions during the growth season, making their accurate placement within the zones vital to ensure the reliability of the data they generate, thereby supporting effective crop management decisions.

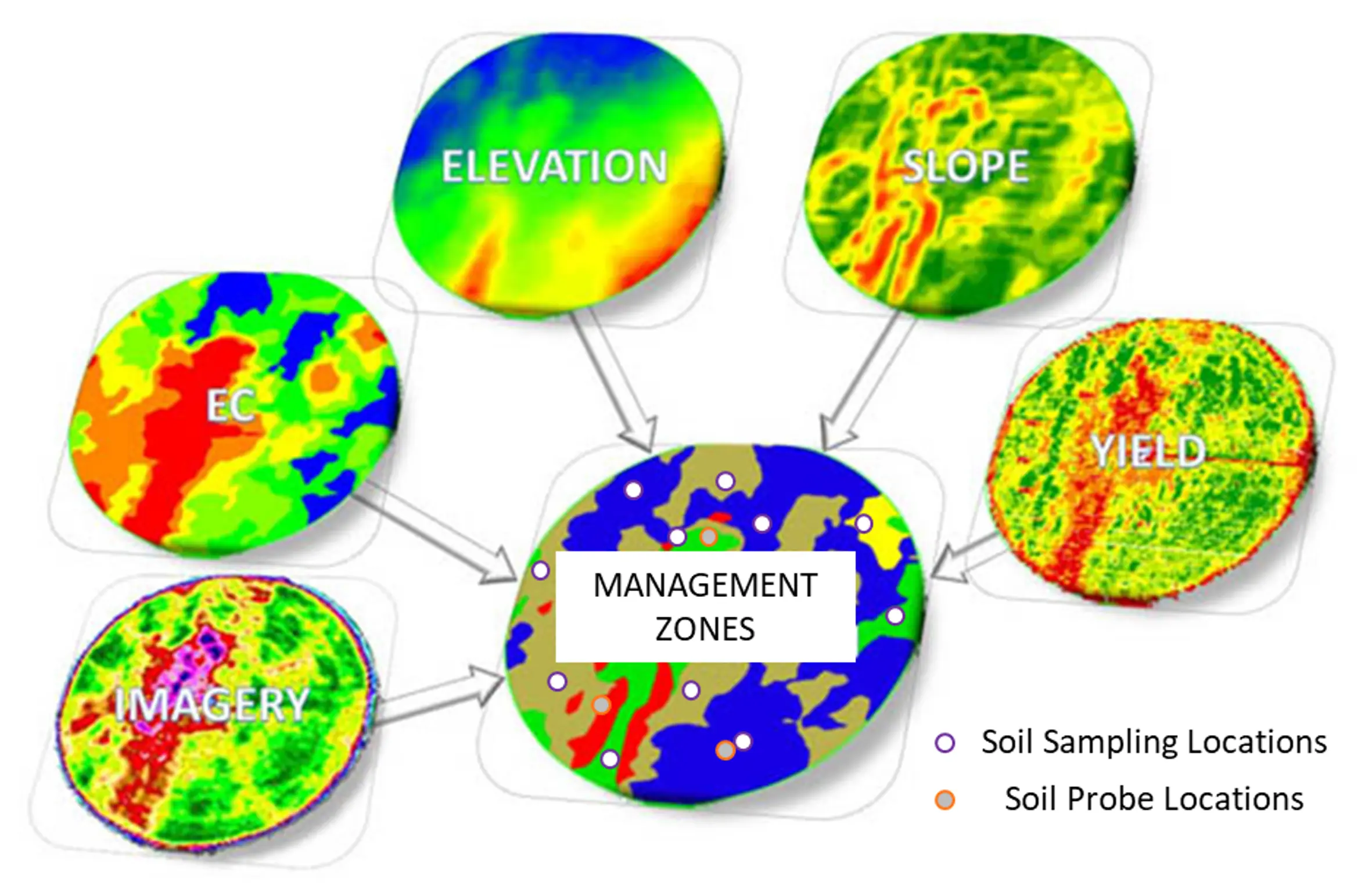

Figure 19: Example of paddock management zones created by stacking multiple spatial layers. Using the zones optimal soil sampling and probe locations can be selected.
Source: Crop Quest

Section 6D

Soil Analysis Probes

Soil analysis probes are a great tool for offering real-time objective insights into soil health and fertility. These probes provide continuous monitoring of key soil parameters such as moisture content, salinity, and pH. By collecting data over time, farmers gain a comprehensive understanding of soil conditions, enabling them to make informed decisions regarding crop management strategies.

What is soil carbon?

Soil carbon refers to both the carbon in organic matter, which plays a critical role in the chemical, physical, and biological health of soils, and the inorganic carbon that occurs as carbonate minerals (such as limestone) or charcoal in soils.

Beyond aiding irrigation, these moisture readings are also beneficial for dryland farming. Tracking soil moisture levels, combined with in-season rainfall forecasts, can improve the ability of farmers and agronomists to forecast their crop yield. This more accurate yield estimation can inform decisions on input investments, like nitrogen. By assessing moisture in the root zones, farmers can adjust nitrogen use to match current conditions, optimising resource deployment. The improved yield estimation can inform grain marketing strategies prior to the start of harvest.

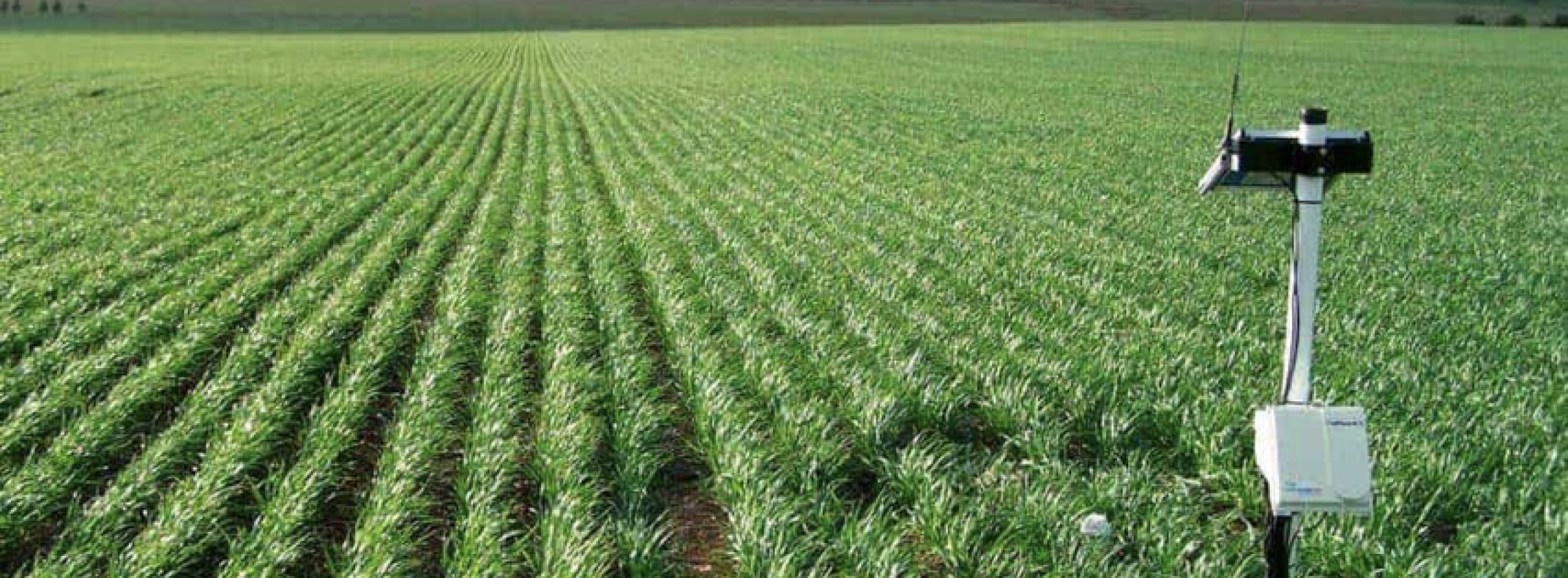

Figure 20: An example of a soil probe and data logging station in the field.
Source: Sentek

In livestock management, the data gathered from moisture probes play a crucial role in guiding key decisions about grazing strategies, acquiring additional or containment feed, and determining the best times to buy or sell livestock, as well as assessing nitrogen requirements for pasture health.

Such informed decision-making aids in maintaining the sustainability of both soil and pastures by ensuring that minimal feed levels are sustained, promoting healthy regrowth of perennial pastures and supporting the overall ecological balance of the farming system.

Did you know?

Moisture readings can inform decisions on input investments, like nitrogen.

Soil moisture probes, available in various forms and brands, primarily fall into two categories:

  • Volumetric Soil Moisture sensors
  • Soil Water Tension Sensors

Volumetric Soil Moisture Sensors

Volumetric systems measure the total amount of water in the soil. To estimate how much of this water is “readily available” to plants, the soil type needs to be known.

In practice, volumetric moisture monitoring tools can be used to guide not only when to irrigate but how much water to apply.

Capacitance probes and “total domain reflectometry (TDR)” capacitance spikes are examples of commonly used volumetric monitoring tools.

Typically, capacitance probes measure soil moisture at increments (usually 10cm) down the soil profile to a depth of 0.8m to 1.2m.

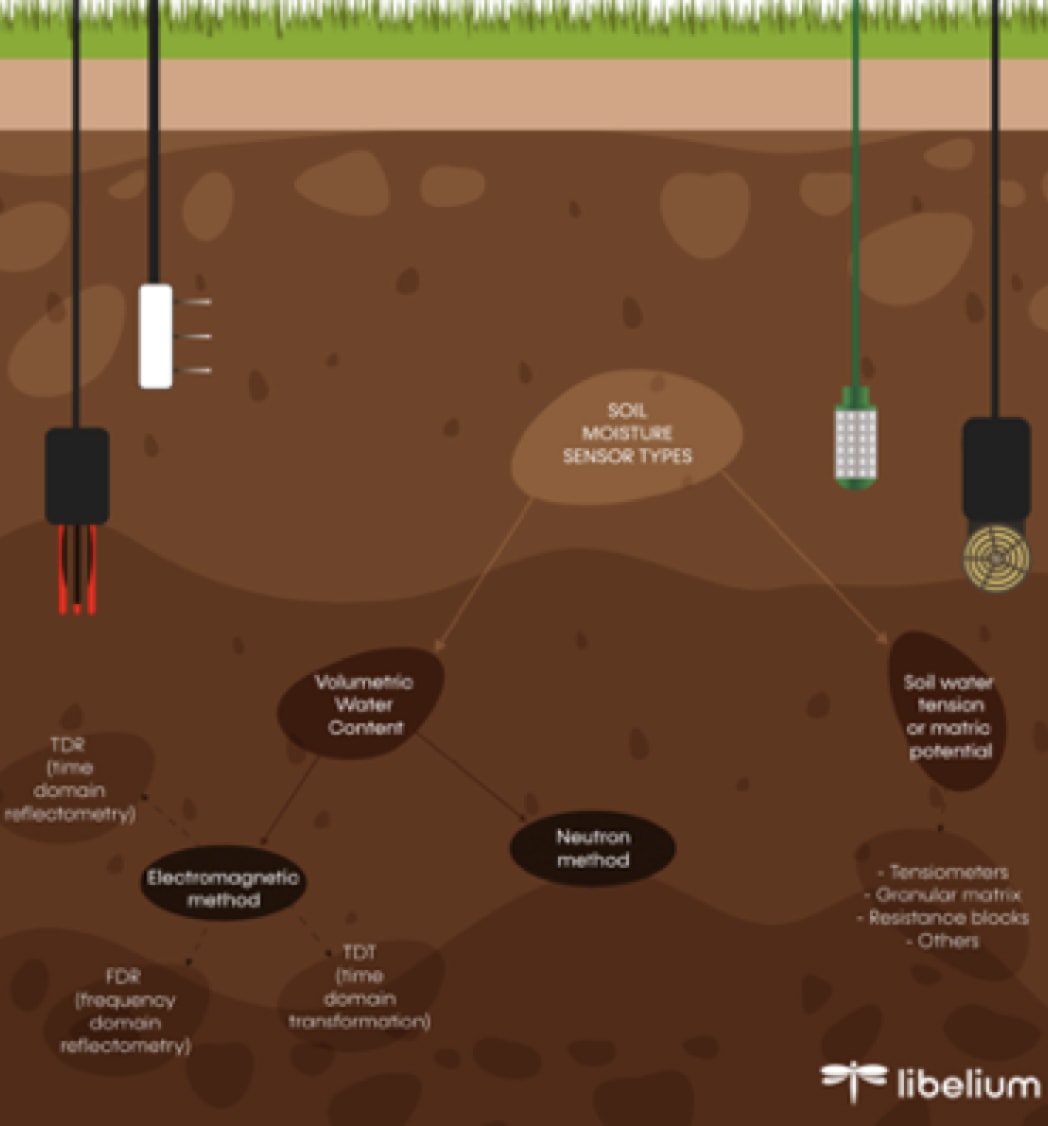

Figure 21: Figure indicating the different types of soil moisture measurement. Volumetric Water Content and Soil Water Tension
Source: Libelium

Soil Water Tension Sensors

Soil Water Tension Sensors, on the other hand, measure the effort required by plant roots to extract water from the soil, indicating the soil's dryness or saturation level.

Among tension sensors, tensiometers and gypsum blocks are commonly used. Tensiometers directly measure soil moisture suction. The suction reading decreases when the soil around the tensiometer wets up with rain or irrigation.
Conversely, the reading increases as the soil dries out.

Gypsum blocks consist of two electrodes embedded in a block of porous material. As with tensiometers, water is drawn into the block from wetter soil and out of the block from drier soil. The electrical resistance of the block is proportional to its water content, which is related to the soil water suction of the surrounding soil.

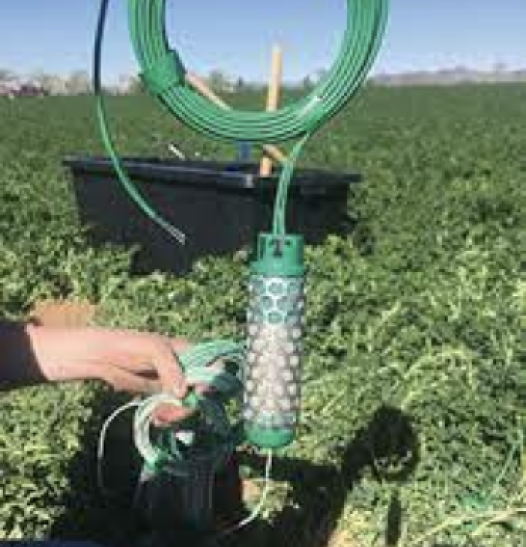

Figure 22: water potential — gypsum block sensor.

Soil Probes – Additional Metrics

Many of the newer soil probes also offer the ability to measure soil temperature and soil EC.

Soil temperature critically influences seed germination and root growth. Hence soil temperature updates from the probe can help farms best match the sowing date to the ideal conditions of the plant. Additionally, the occurrence of numerous soil-related pests and diseases is often linked to temperature. By keeping track of soil temperature, farmers can better forecast potential pest and disease risks, enabling them to take early preventive actions.

Soil electrical conductivity (EC) reflects the salinity levels of the soil, which is pivotal in devising irrigation plans. By merging EC figures with moisture content, farmers can adjust irrigation timetables to counteract salt build-up in areas prone to high salinity, thus averting soil deterioration. Furthermore, EC acts as an indirect gauge of nutrients accessible for plant absorption, assisting in fine-tuning fertiliser application. This approach not only boosts fertilisation efficacy but also prevents excessive use, thereby lessening the environmental impact of farming activities.

Remember

Soil moisture probes fall into two categories: Volumetric Soil Moisture sensors and Soil Water Tension Sensors.

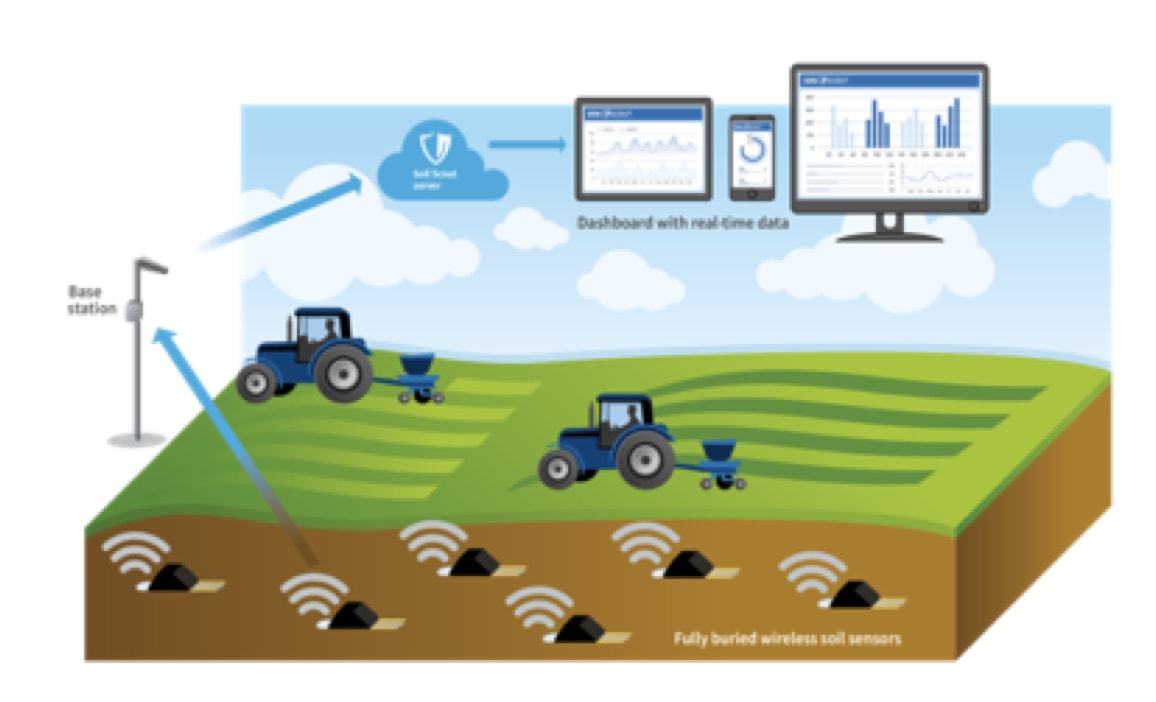

Installation and connectivity

Positioning sensors

When positioning moisture sensors on a farm, it's crucial to consider soil diversity and place sensors in areas that accurately reflect the main soil type, crop growth stage, health, and water usage. It's also essential to ensure sensors are correctly installed and shielded from potential damage by livestock or machinery. For optimal setup, it's recommended to seek advice from experts like manufacturers, retailers, consultants, or irrigation officers.

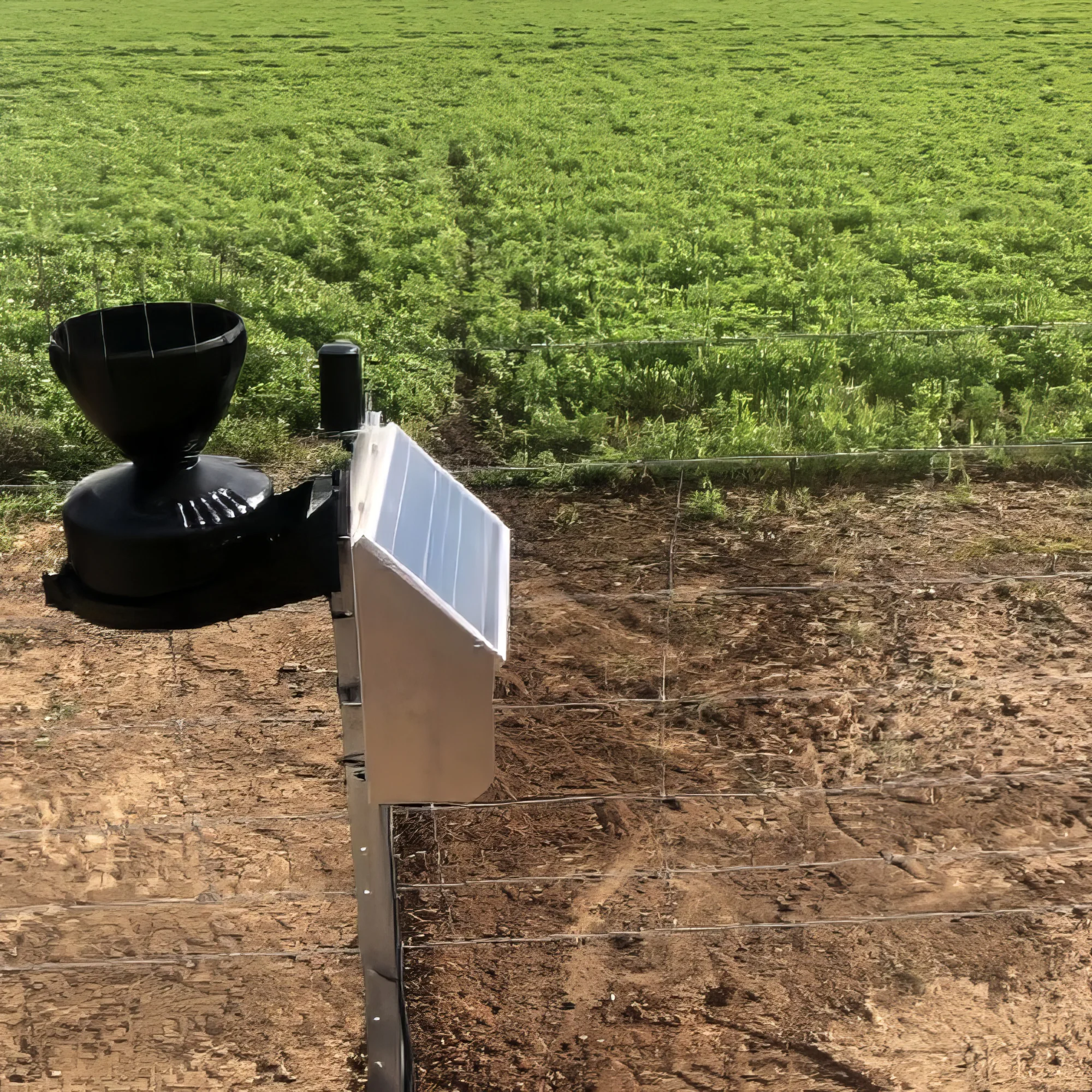

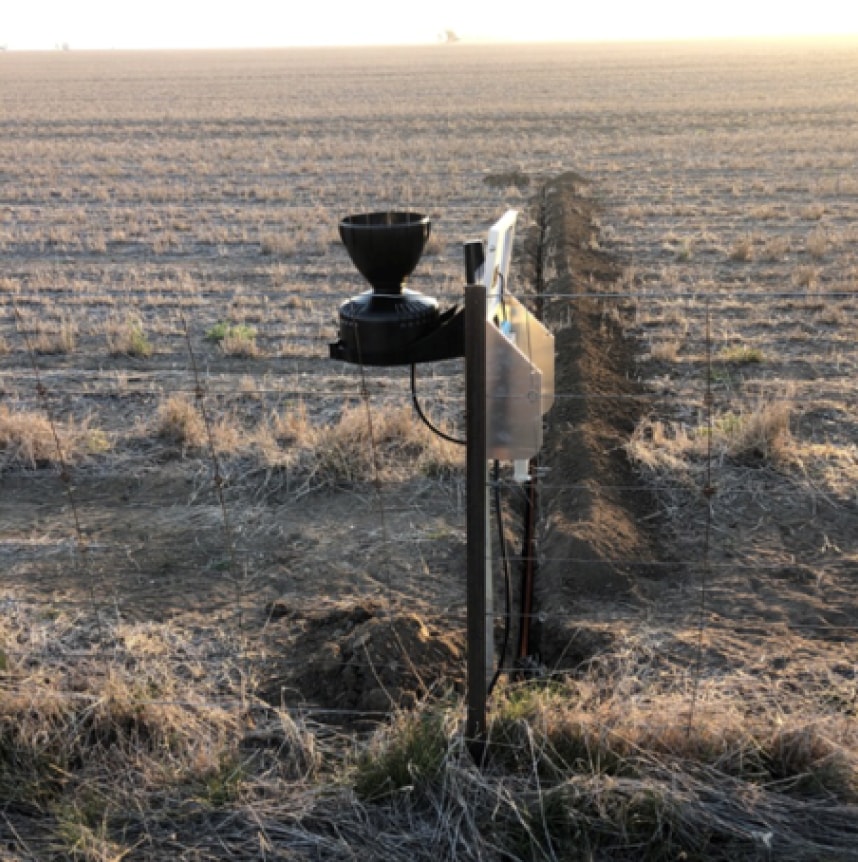

Figure 23: Example of a data logging system mounted on a fence line, with the probe installed within the boundary.

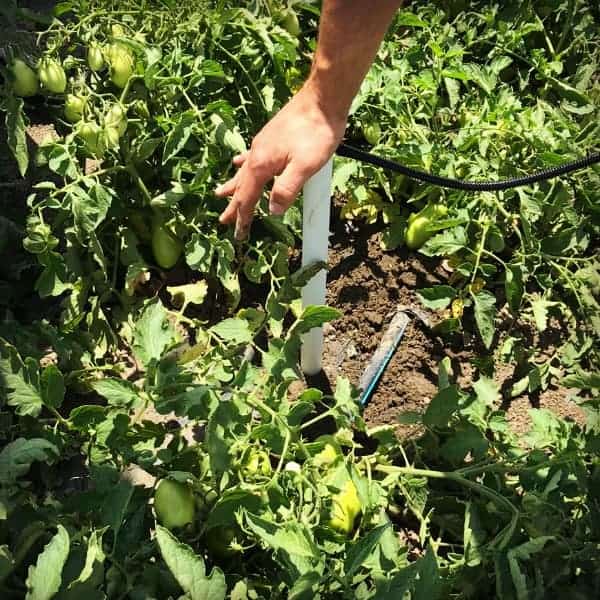

Figure 24: Example of a probe installation process.
Source: Sentek

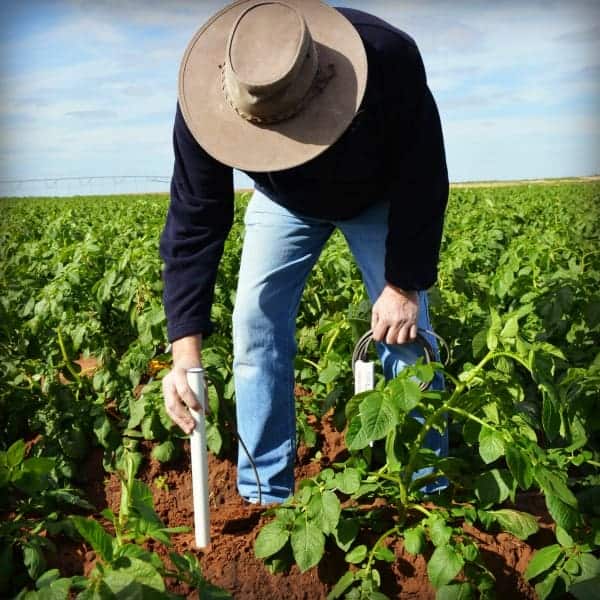

Figure 25: Example of a probe installation process.
Source: Sentek
Figure 26: Example of a data logging system mounted on a fence line, with the probe installed within the boundary.
Image credit: Integrated Irrigation

How soil moisture sensors work

Modern smart soil moisture sensors offer wireless data transmission, flexible deployment options and direct integration with GIS databases, thus removing the need for manual data collection. This data is wirelessly sent to digital devices and displayed in a user-friendly graphical format, facilitating easy data comparison and analysis, accessible from any location with internet connectivity. However, a key factor in choosing the right probe is its connectivity capability, as soil moisture sensors depend on it to transmit data.

Figure 27: Figure depicting soil probe locations and data logging to the cloud and office.
Source: Soil Scout

How to determine the best sensor for your farm

The connectivity landscape is rapidly changing, with various options at different commercialisation stages.

Thorough research or expert consultation is advised to identify the best connectivity solution for your farm, considering that availability and costs may vary by location.

Connectivity options to explore include Mobile, WiFi, LoRaWAN, Low Orbit Satellite, and NarrowBand IoT, each offering different benefits and limitations based on your specific agricultural needs and farm location.

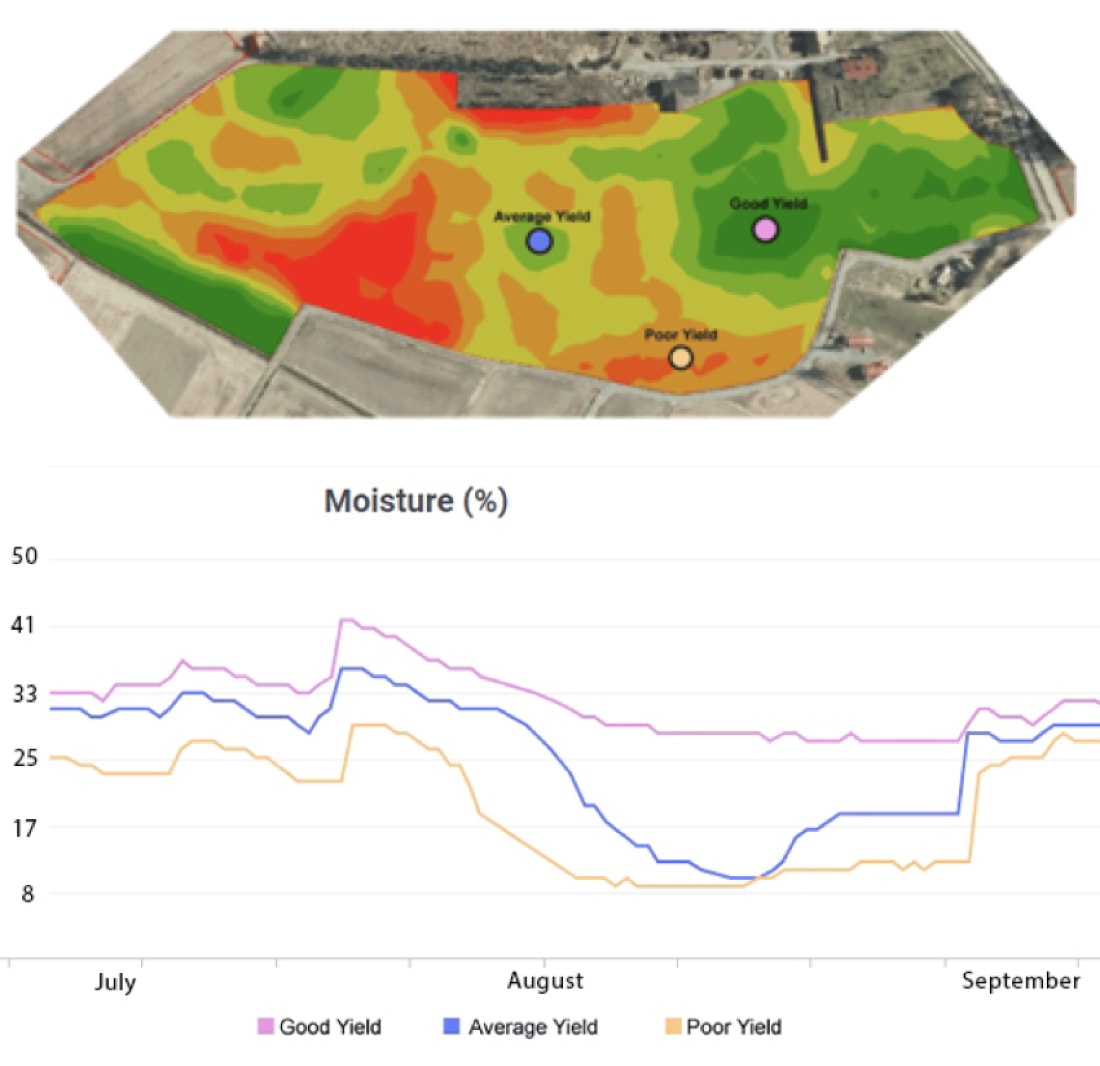

Figure 28: Example of soil probe locations based on historic yield maps. The graph shoes that while drought limited growth in the poor region beginning from July, the good yield spot was able to sustain water availability throughout the season.
Source: Soil Scout

Section 6E

Monitoring to Management

Farm management decisions made on evidence gathered from proper soil monitoring ensure improved soil health and plant
nutrition and protect environmental health.

Zone Management

What is zone management?

After establishing field management zones using stacked proximal and spatial crop layers, as validated by soil testing, and soil moisture probes strategically installed, growers can utilise this digitally derived insight to create informed crop management plans for their fields.

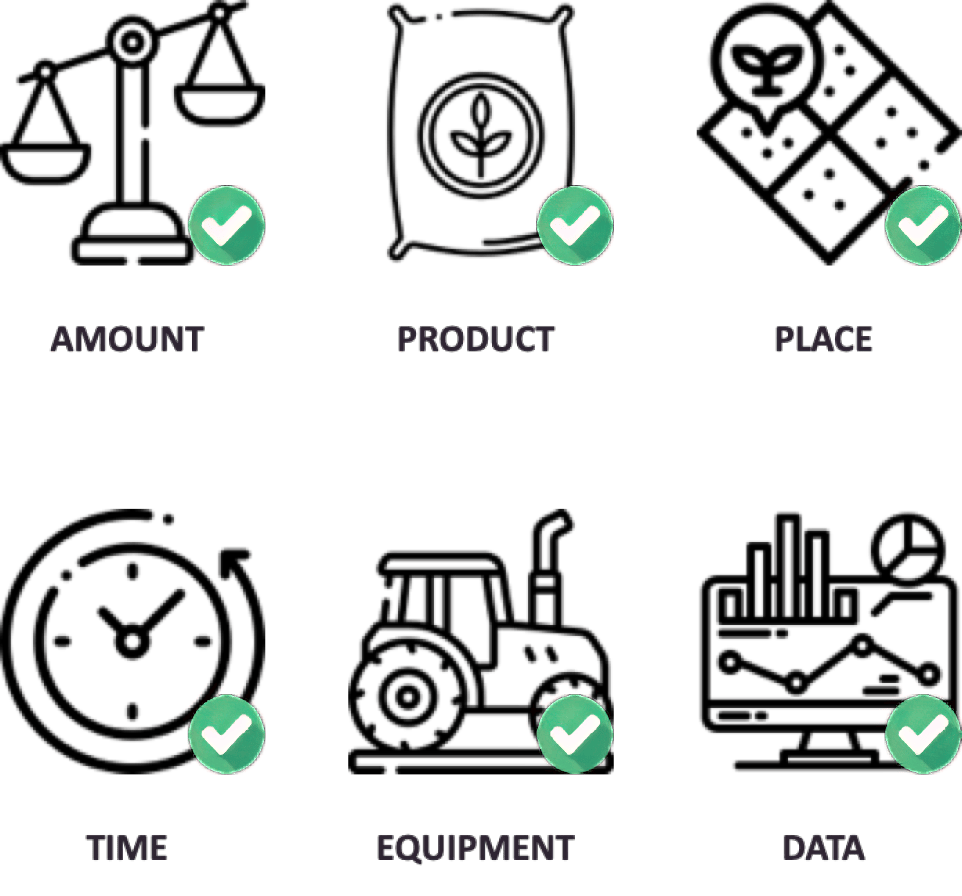

This precision agriculture approach to cropping and pasture management focuses on tailoring farming practices to the unique characteristics of each zone within a field using the 6 Rs.

Putting the RIGHT amount of the RIGHT product in the RIGHT place at the RIGHT time (the traditional ‘4 Rs’), using the RIGHT equipment, and making the decision as to the right amount underpinned by the RIGHT data (the ‘6 Rs’).

The 4Rs of good
fertiliser management.

Cost effective fertiliser decisions hinge on adhering to the 4R’s of fertiliser management – the right nutrients, at the right rate, at the right time, in the right place.

nutrientstewardship.org/4rs

Strip Trials

Fertiliser strip trials are experiments conducted in the field to assess the effectiveness of various fertiliser strategies on crop yield. By dividing a field into sections and applying different fertiliser rates, types, or methods to each, farmers can directly observe the impact on crop growth and productivity.

For instance, a trial might explore varying nitrogen rates on wheat, compare granular versus liquid fertilisers, or test precision fertilisation techniques like variable rate applications. These trials generate paddock data, enabling farmers to fine-tune future fertiliser applications. These comparisons allow strip trials to answer questions such as: What is the RIGHT amount, the RIGHT product and the RIGHT place?
Key Note: Trial strips need to be wide enough for at least two (ideally three) header runs for yield data collection. By ensuring three harvester widths for each treatment, there will always be at least two harvester run lines that fall completely within a treatment strip.

Remember

Strip trials generate paddock data, enabling farmers to fine-tune future fertiliser applications

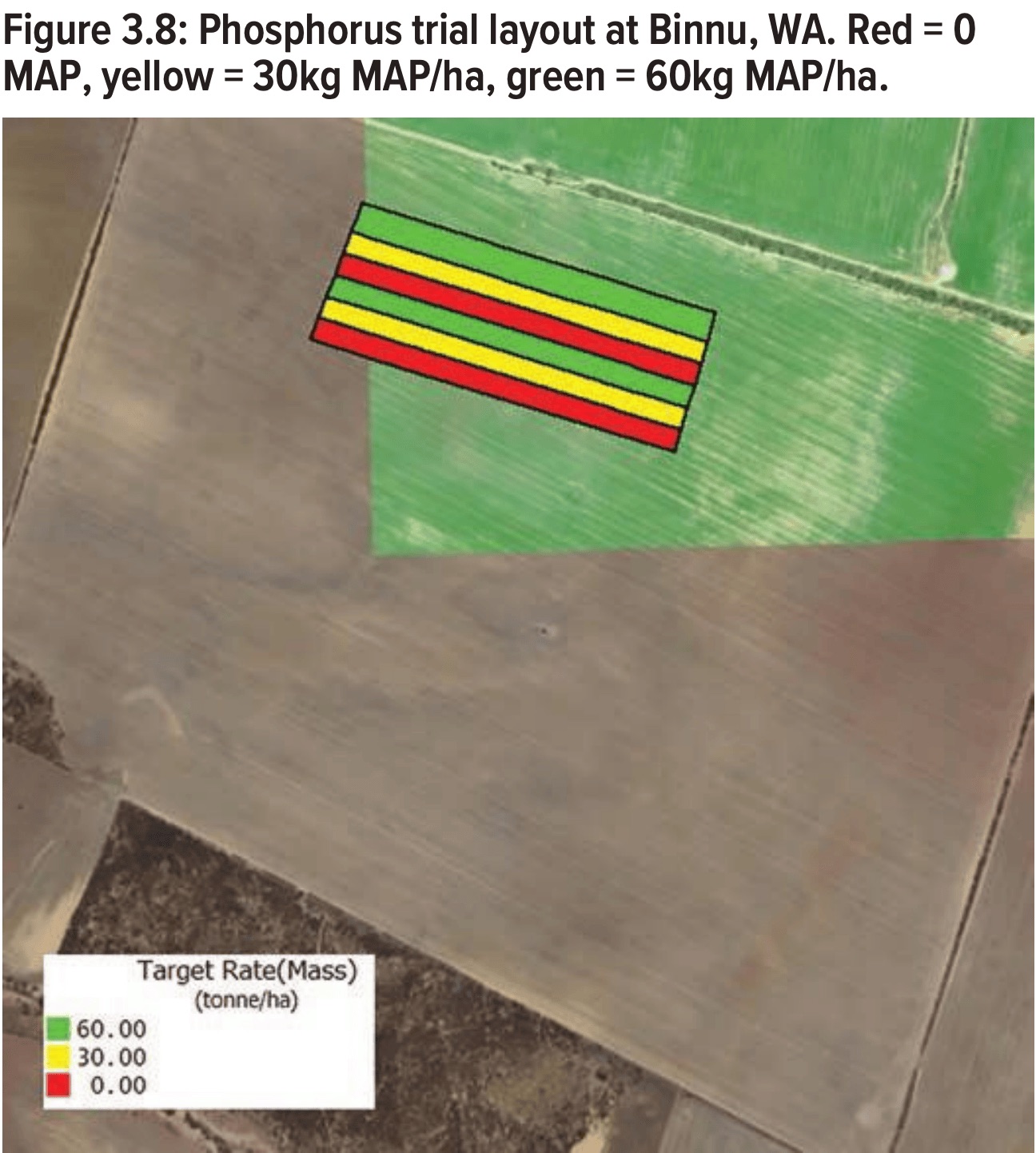

Figure 29: Phosphorus trial layout at Binnu, WA. Red = 0
MAP, yellow = 30kg MAP/ha, green = 60kg MAP/ha. Resulting wheat yield map where the zero P
strips are visually evident. The average yield was 1.4t/ha.

Variable Rate Application Maps

Once the optimal product and rate for each zone have been identified, a full Variable Rate Application (VRA) map can be prescribed for that paddock.

The technical process of using VRA maps begins with converting these maps into controller files compatible with the machinery's onboard console. This is done using specialised agricultural software that can interpret the VRA map data and translate it into a format the machine's controller can understand. These controller files contain geospatial data that delineate the field zones and prescribe the exact rates of inputs for each zone.

Once the controller file is loaded into the machine's system, GPS technology guides the machinery across the field. The onboard computer reads the controller file in real time, automatically adjusting the application rates of the inputs according to the geo-referenced prescriptions on the map.

Did you know?

VRA controller files contain geospatial data that delineate the field zones and prescribe the exact rates of inputs for each zone.

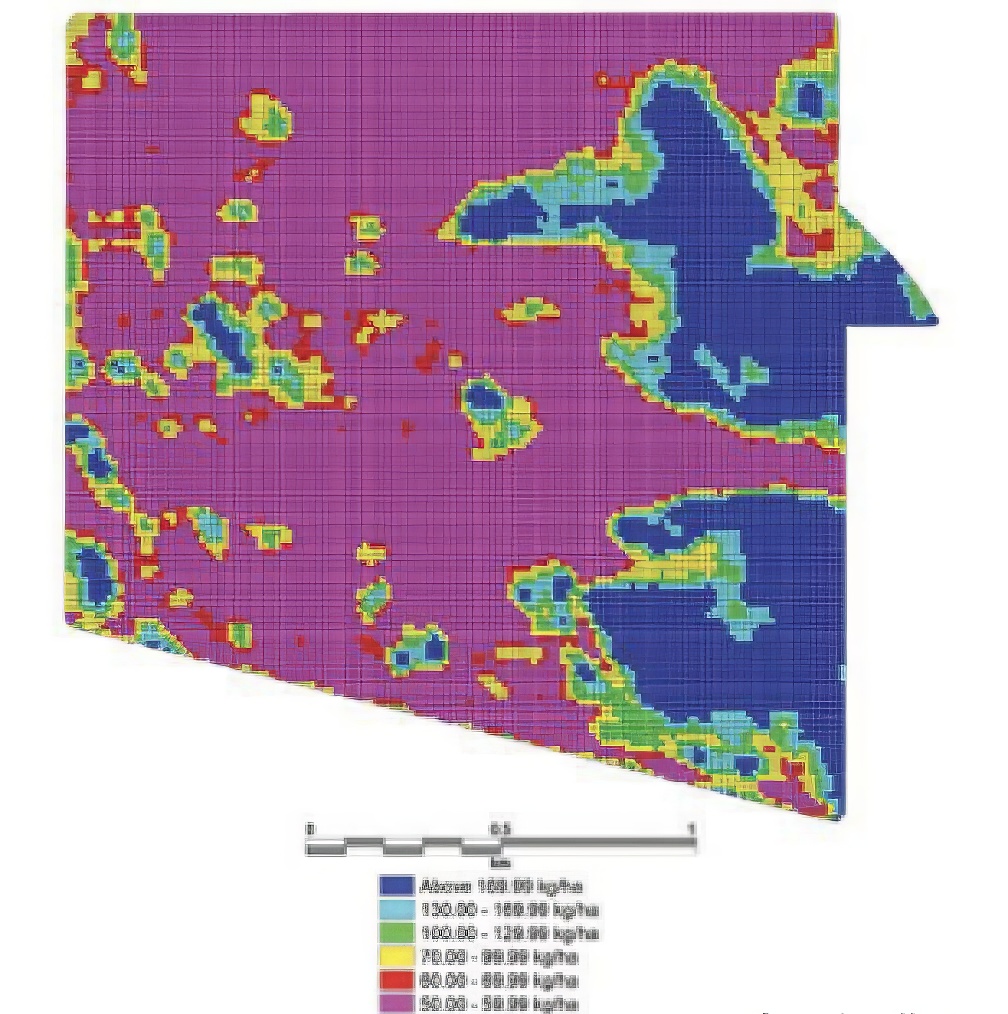

Figure 30: Variable Rate Phosphorus map.

Software

The effective use of digital and precision agriculture tools discussed in this module depends significantly on the use of supporting software programs. These programs play a vital role in managing and visualising the data collected by the tools, facilitating decision-making processes, and implementing actions based on the information gathered. Below are some key ways in which software supports the integration of digital agriculture practices on your farm.

Soil Probe and Soil Modelling Software

  • Logging results of soil probes
  • Planting time recommendations
  • Irrigation recommendations
  • Automated irrigation scheduling
  • Soil Moisture landscape movement modelling

Farm Management Software

  • Farm and Field maps
  • Planned Field Operations
  • Recommended Field Operations
  • Actual Field Operations
  • Crop Management History
  • Collation of Crop Health data (Satellite)

Farm Connectivity

  • Farm Wi-Fi and Cellular connectivity

Agronomic Spatial Analysis Software

  • Soil Sample Locations and corresponding lab results
  • Kriging of sampling point locations
  • Collation of Yield Data
  • Collation of Crop Health data (UAV/Aerial/Satellite)
  • Collation of Proximal Soil Sensing Data
  • Clustering of Spatial Layers
  • Strip Trial + VRA map/controller file generation

Control Console System

  • Farm and Field maps
  • Planned Field Operations
  • Actual Field Operations
  • Ingesting VRA maps
  • As – Applied Maps
Figure 31: Digital Farm
Source: Purhased iStock
menuchevron-down
